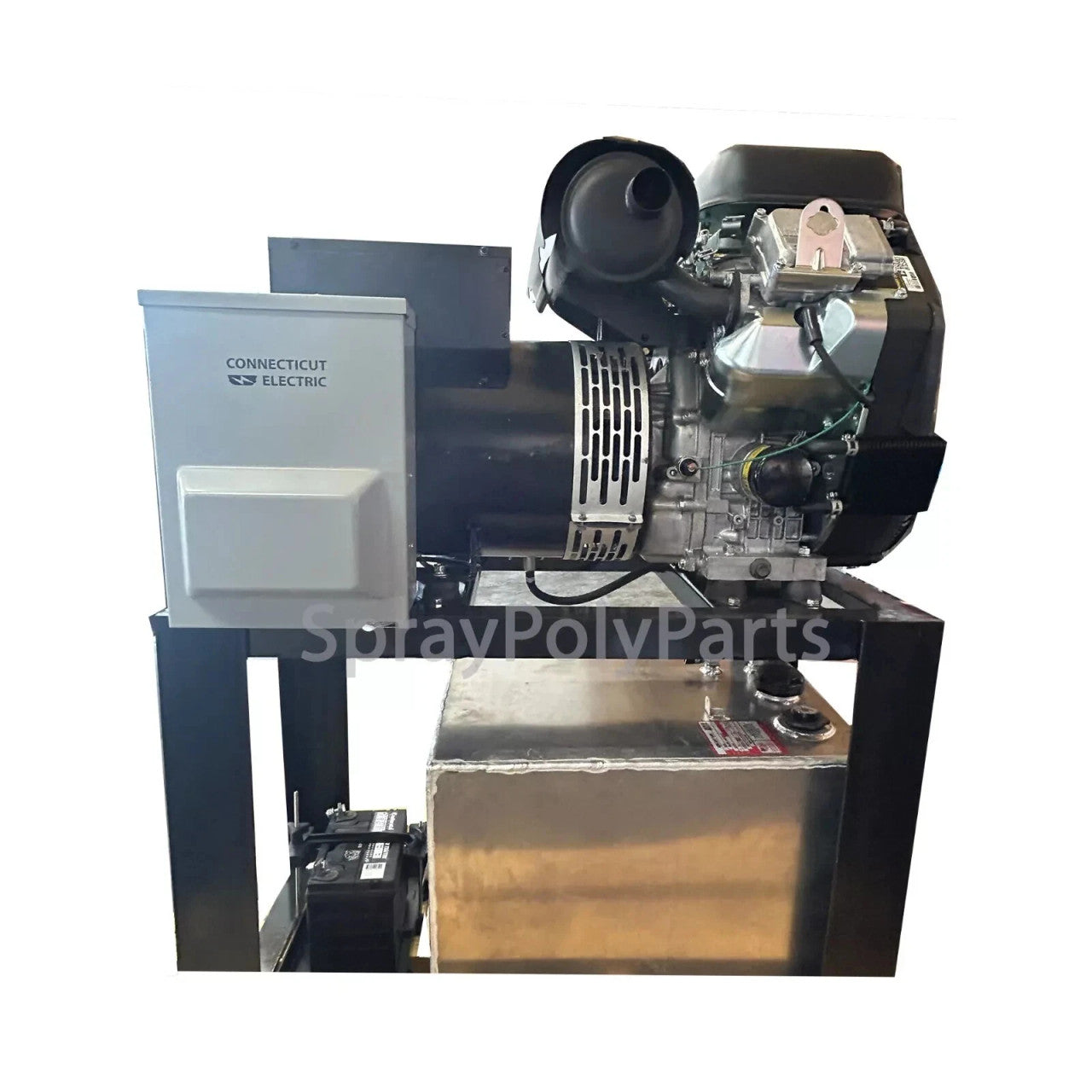

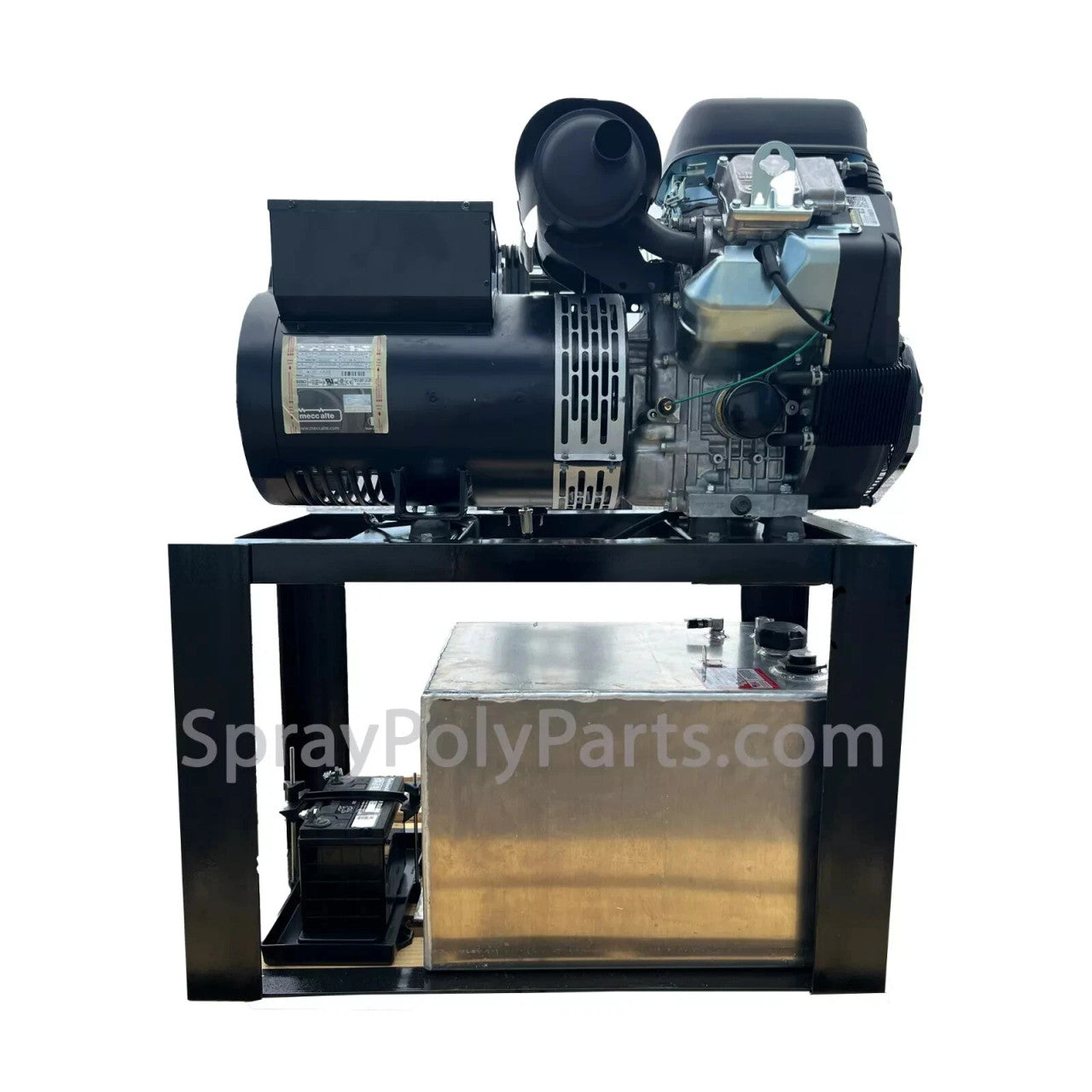

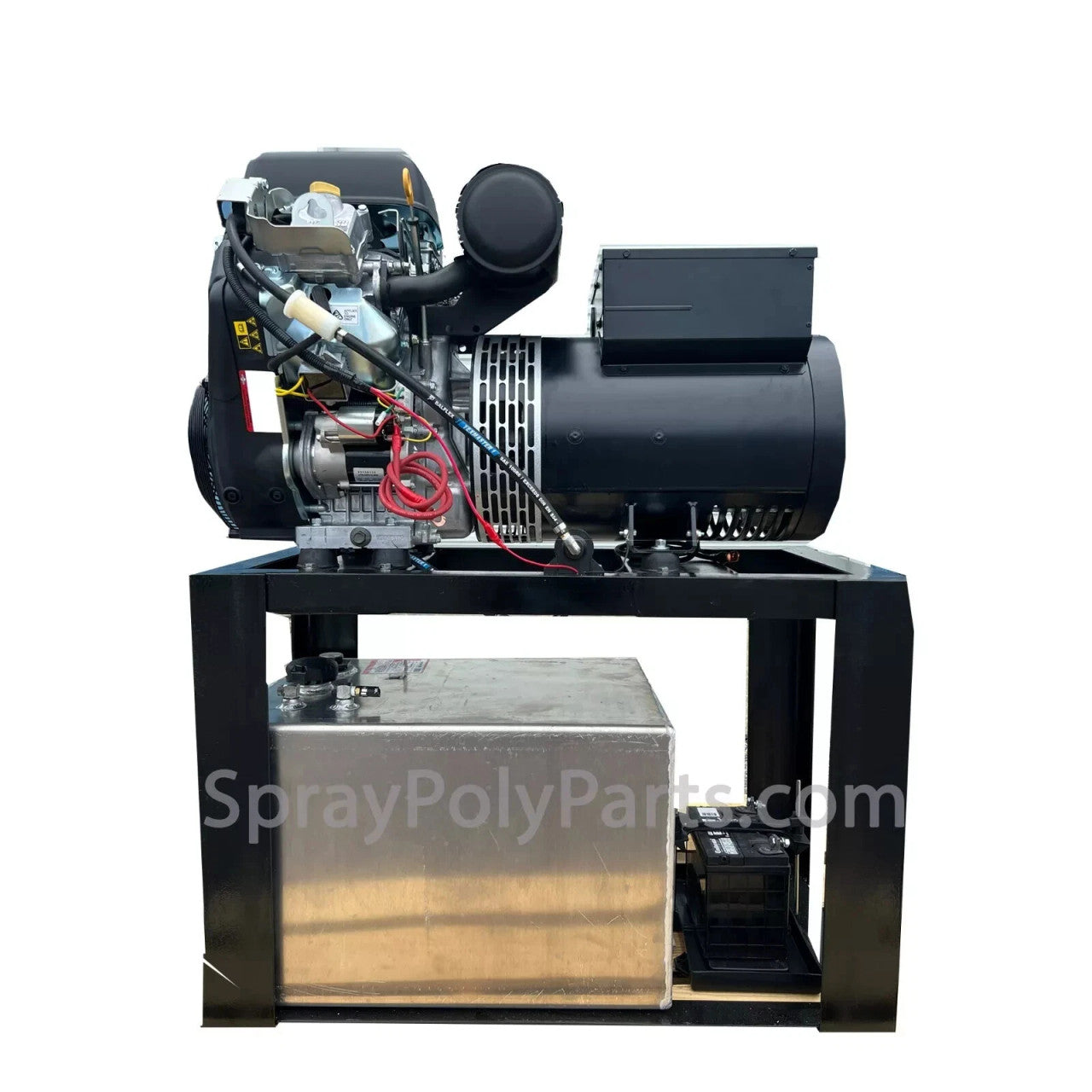

22KW 120/240V 1-PHASE 60HZ GAS GENERATOR WITH STAND (SPP22KW) (SPP-22KW)

This unit is set up to be wired directly into a electric distribution panel.

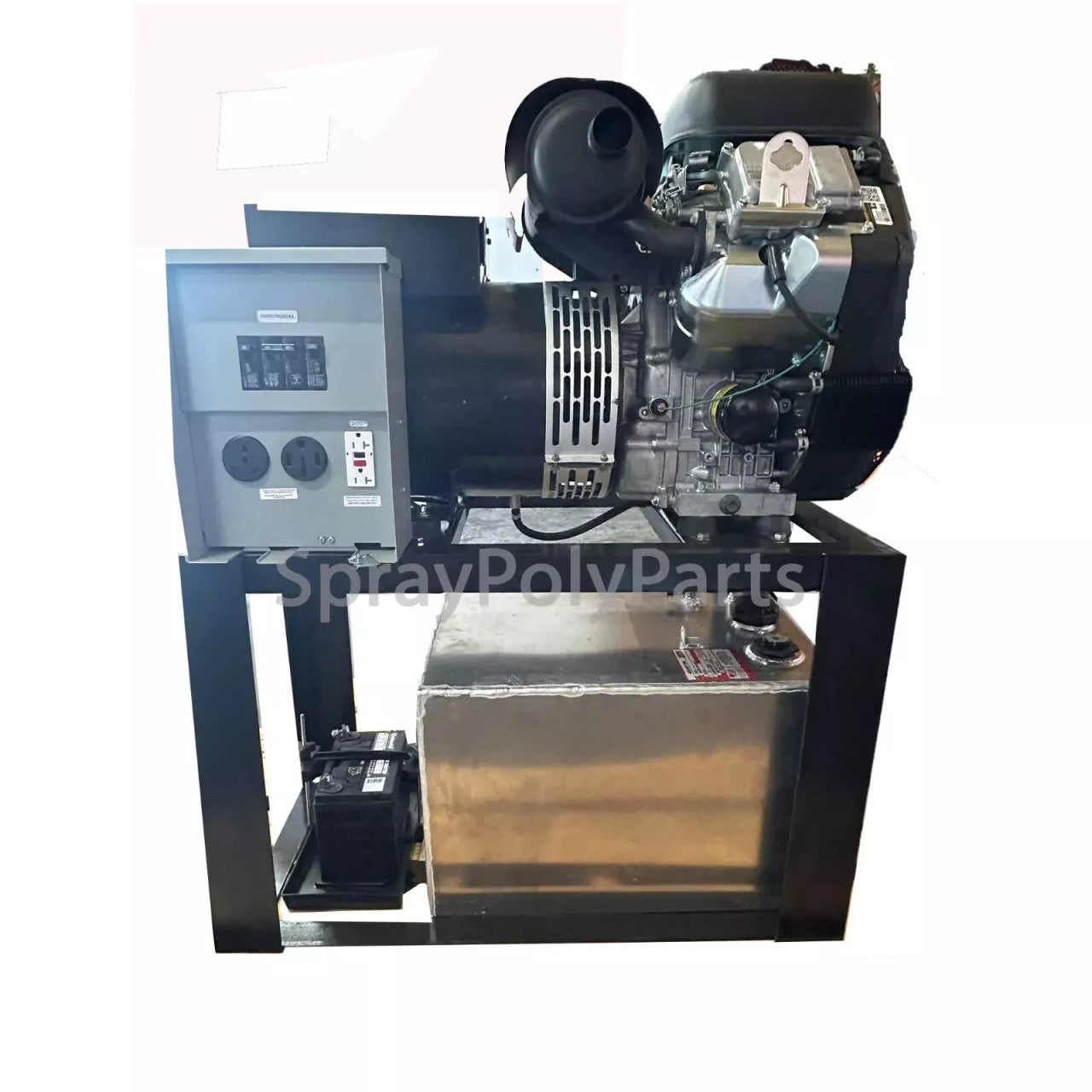

** Please note that Electrical Panel Box  & required BCI Group 26 500CCA Battery  shown in images are not included in this set up** Click the link below or use the drop down menu to add on the Electrical Panel Box**

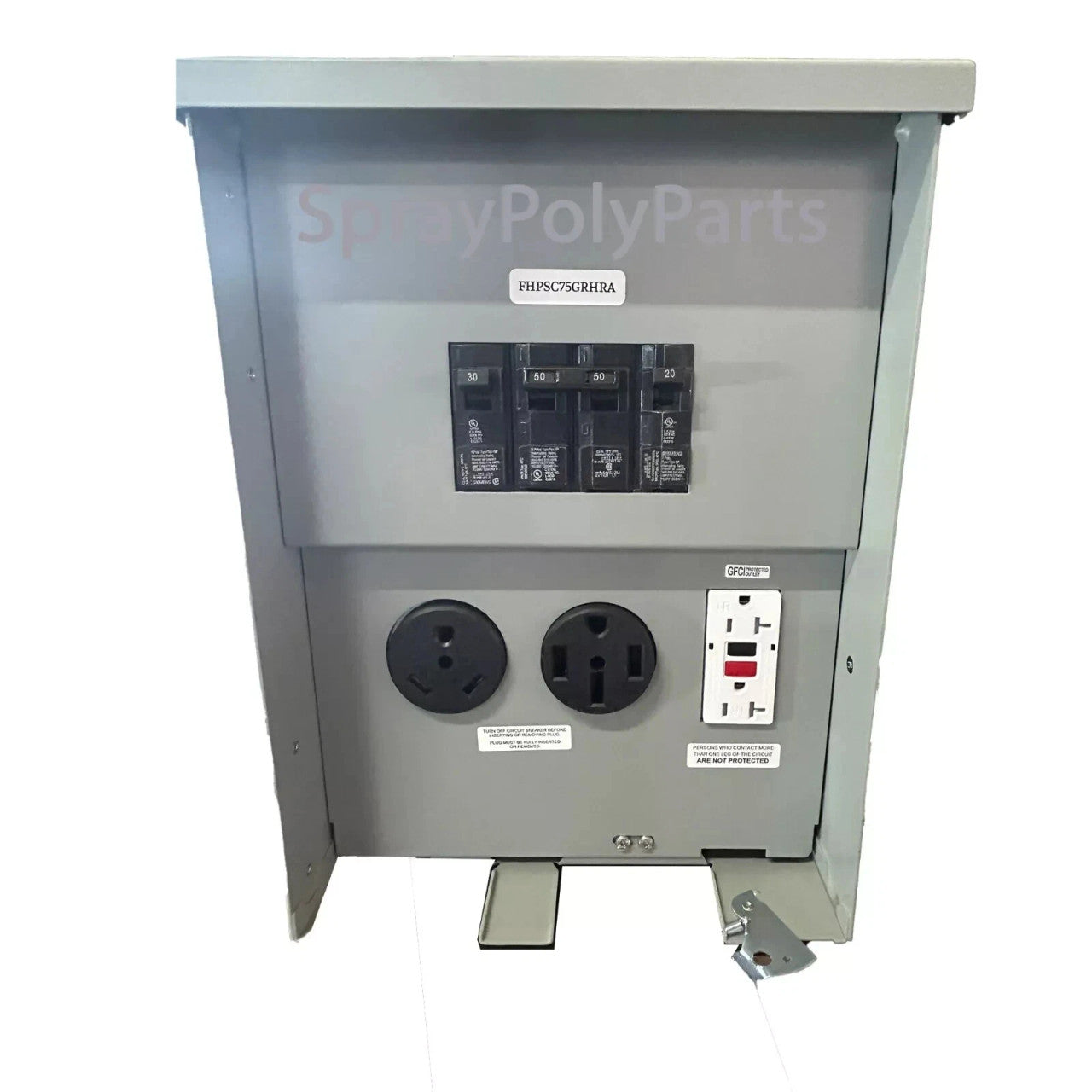

        Optional Upgrade - 110V/120V 50A/30A/20A  Electrical Panel Box - Add $500.00

• B&S Vanguard V-Twin 35HP 993 CC
• Cast iron cylinder sleeves increase engine life and reduce oil consumption

Generator

• Mecc Alte Brushless Industrial Alternator End
• 100% Copper Windings
• Fixed stator with skewed slot and a rotating inductor fitted with a damper cage
• 2/3 pitch reduces harmonic content <5%
• AVR true RMS with voltage accuracy of +/- 1%
• 22 KW 1 Phase 60 Hz
• 120V/240V
• 91 Starting Amps
• 75 Running Amps
• Electric Start

Product Feature

      Our SPP-22KW provides more running watts than any other air-cooled generator on the market.

       It is a great unit to add to vehicles

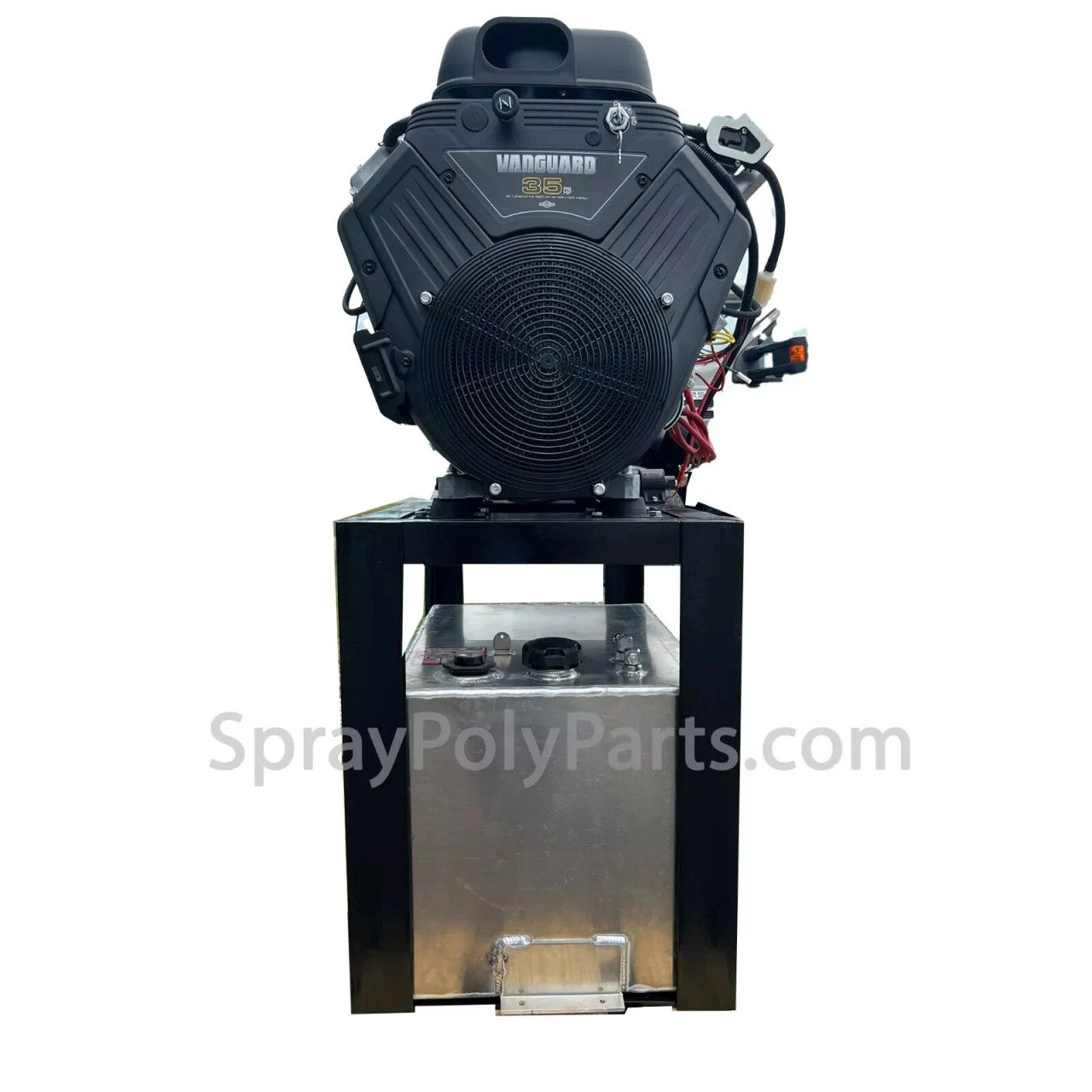

• Briggs & Stratton Vanguard Engine
       Premium-grade Vanguard engines are application-
       engineered to power equipment that works for a living



  Low Oil Protection

       In the event of low-oil level, the engine will shut down,

       which will protect the engine from damage.

  Vacuum Fuel Pump

       30″ fuel lift capability.

  MAUX Auxiliary System

       Ensures the generator end can withstand 300%

       motor starting inrush for 20 seconds.

  100% Load Tested

       We load test every generator before it leaves our factory.
