MORSE/BOSS 4040 SG 40KW GENERATOR/40 CFM PACKAGE (BOSS4040) (BOSS-4040)

BOSS

MORSE/BOSS 4040 SG 40KW GENERATOR/40 CFM PACKAGE (BOSS4040) (BOSS-4040)

SKU: BOSS-4040

In Stock

$34,750.00

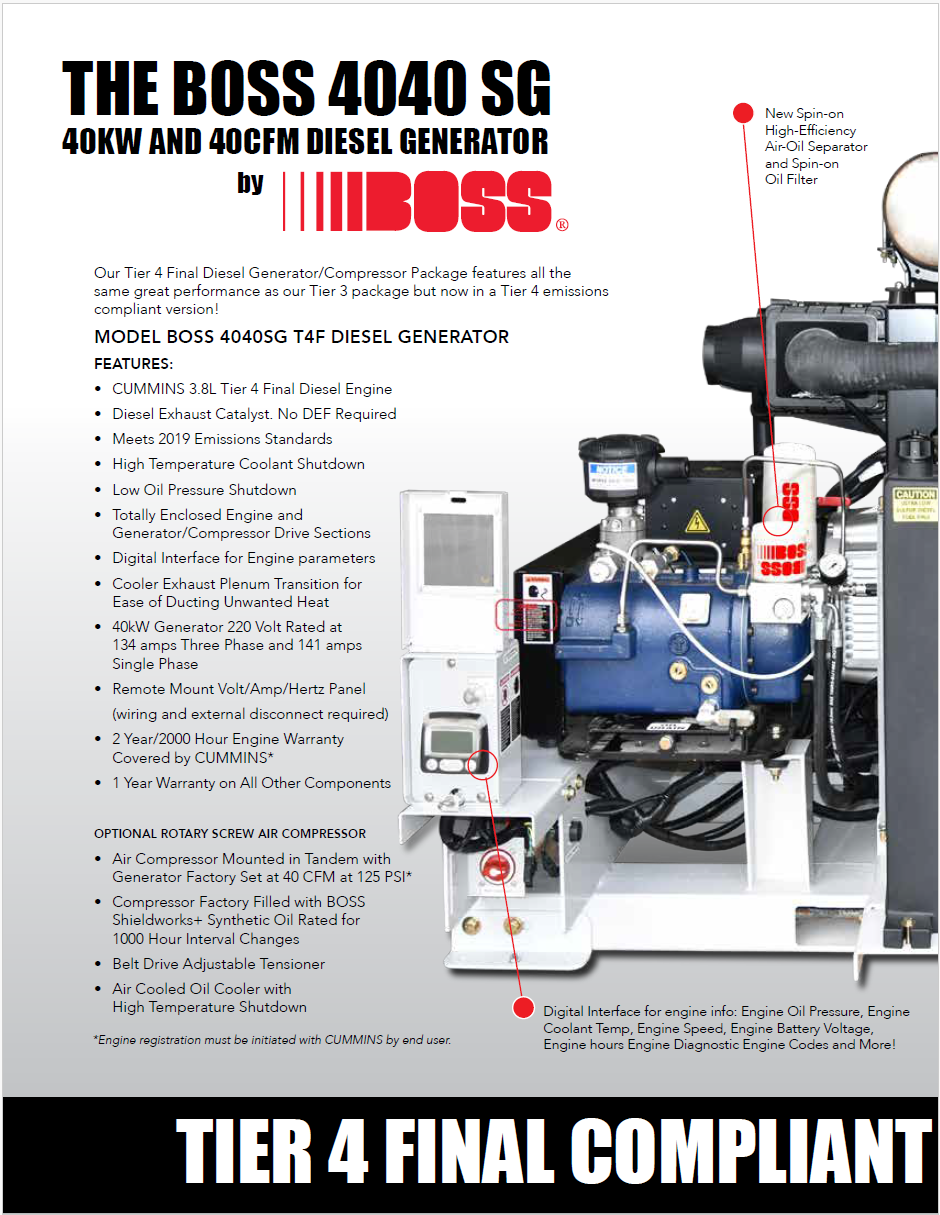

The BOSS 4040SG is a frame mounted, Tier 4 Final diesel engine-driven, revolving field, alternating current (AC) generator. The generator's revolving field is driven at 1800 rpm by the diesel engine.

This generator can be used for prime or stand by power and can be wired 3 phase or 1 phase at a frequency of 60 hertz. Voltage can be 120/240 1-PH or 208 to 240 and 416 to 480 volt 3-PH.

Specifications

Model BOSS 4040SG

Model QSF3.8 Cummins Turbo-charged diesel engine rated at 74HP@ 1800 RPM. 2017 Tier 4 Emission compliant
High Temp Coolant SD
Low Oil Pressure SID (Engine)
Low Coolant Level SID
Full shift polypropylene fuel tank
Air compressor mounted in tandem with generator set at 40cfm @ 125 Psi
Belt drive with adjustable tensioner
Compressor with ShieldWorks Synthetic Compressor Oil rated for 1000-hour change interval
Air cooled oil cooler rn MIT SID and high discharge
Pressure SID – Spin on separator and oil filter
Totally enclosed generator/compressor drive sections
40kw generator 220v@ 134 amps
Three phase @ 141 amps, single phase
Remote mount, digital volVamp/hz panel (wiring/etc DIC rod)

* Optional 60 CFM available with generator de-rated to 35 kw.

Quantity

The BOSS 4040SG is a frame mounted, Tier 4 Final diesel engine-driven, revolving field, alternating current (AC) generator. The generator's revolving field is driven at 1800 rpm by the diesel engine.

This generator can be used for prime or stand by power and can be wired 3 phase or 1 phase at a frequency of 60 hertz. Voltage can be 120/240 1-PH or 208 to 240 and 416 to 480 volt 3-PH.

Specifications

Model BOSS 4040SG

Model QSF3.8 Cummins Turbo-charged diesel engine rated at 74HP@ 1800 RPM. 2017 Tier 4 Emission compliant
High Temp Coolant SD
Low Oil Pressure SID (Engine)
Low Coolant Level SID
Full shift polypropylene fuel tank
Air compressor mounted in tandem with generator set at 40cfm @ 125 Psi
Belt drive with adjustable tensioner
Compressor with ShieldWorks Synthetic Compressor Oil rated for 1000-hour change interval
Air cooled oil cooler rn MIT SID and high discharge
Pressure SID – Spin on separator and oil filter
Totally enclosed generator/compressor drive sections
40kw generator 220v@ 134 amps
Three phase @ 141 amps, single phase
Remote mount, digital volVamp/hz panel (wiring/etc DIC rod)

* Optional 60 CFM available with generator de-rated to 35 kw.
