IPM IP01 Transfer Pump (1:1 Ratio) (810103)

SKU: 810103

In Stock

$1,180.00

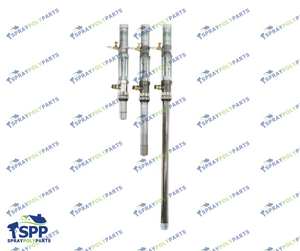

IPMIP-01 Transfer Pump (1:1 ratio)

IPM’s IP-01 series of pumps are general purpose transfer pumps designed for use with a wide variety of materials. The air driven motor is designed with simplicity in mind for years of use in less than desirable conditions.

Features

Fully air operated.
2 ball piston design provides uniform positive displacement.
Extremely durable pump with long life packing.

Typical Applications

Transfer from drum to day tank Continuous or dead end transfer Low viscosity spray adhesive supply Supply pump for air spray and HVLP (high volume low pressure) spray.
Applications of coatings and wood finishing materials.
Spray painting machineries.
Fabricated plastic products.
Automotive, truck and bus refinishing and components.
Business machines and computer cabinet.
Fabricated metal products.
Wood furniture, cabinets and other wood products.

Typical Fluids Handled

Anti-freeze
Windshield washer solvent
Automatic transmission fluid
Motor and hydraulic oil
General chemicals
Thinners and solvents
Light viscosity coatings (primers, stains, enamel, alkyd & acrylic paints)
Spray adhesives and finishes
Solvent based paints
Water based paints (SST models)
Metallic paints
Mould release compounds
Lacquers
Vanishes
Ceramic glazes

Technical Information

Fluid Ratio: 1:1
Max Output Flow Int: 6.0 gpm (23.0 lpm)
Max Output Flow Cont: 4.0 gpm (15.0 lpm)
Max Output Pressure: 180 psi (12.4 bar)
Max Air Input Pressure: 180 psi (12.4 bar)
Air Inlet Port: 1/4 npt(f)
Fluid Outlet Port: 3/4 npt(f)
Rod Piston Packings: Teflon®
Other Seals: Viton®
Rod Cylinder: Stainless Steel
Other Wetted Parts: Stainless Steel

AIR SECTION REBUILD KIT: 601005

FLUID SECTION REBUILD KIT: 601004
