Related Diagrams

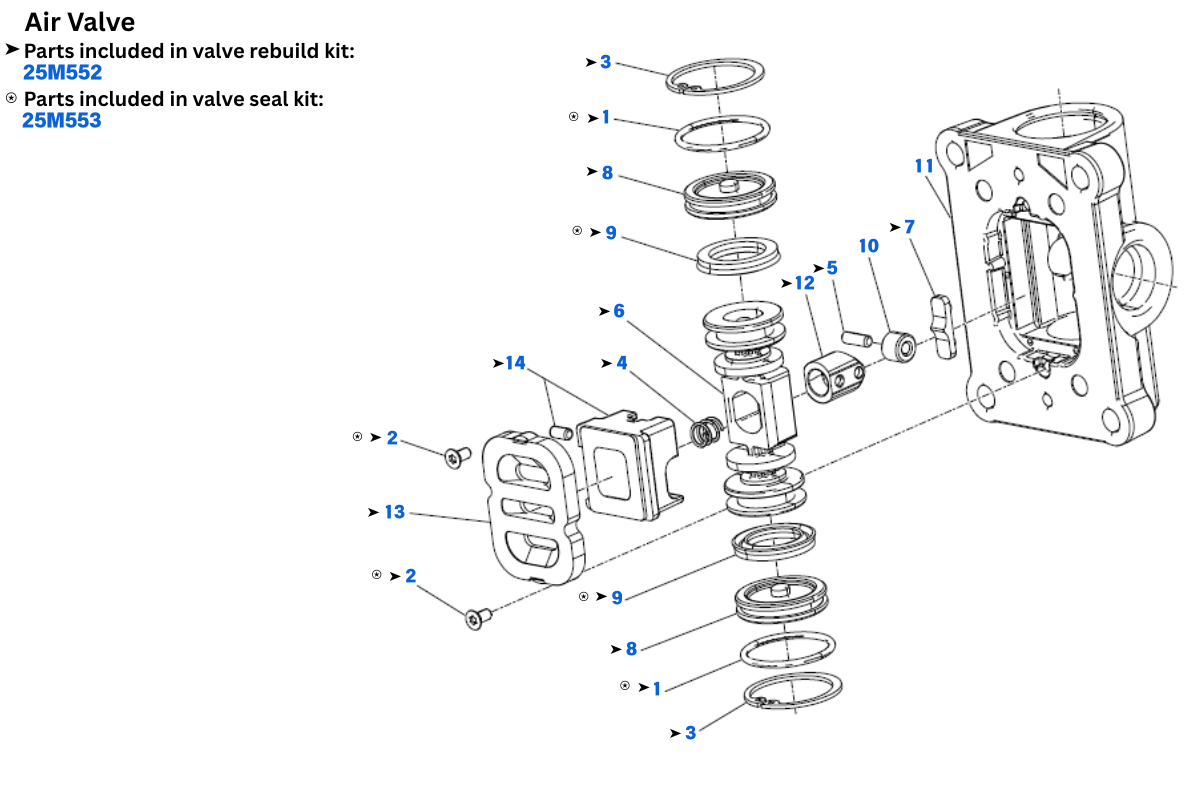

Air Valve

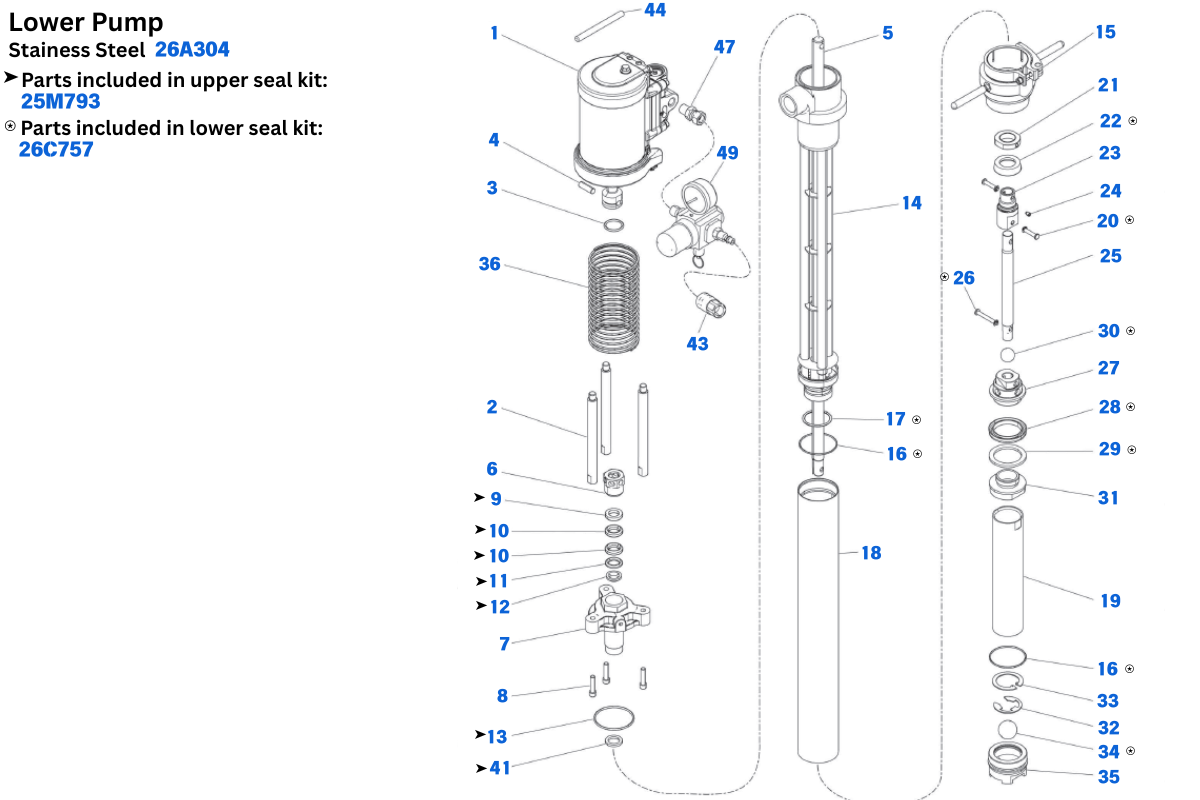

Stainless Steel Lower Pump
Carbon Steel Lower Pump
Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 26C864 | GRACO AIR MOTOR KIT (25C864) | |
| 2 | 17U110 | GRACO AIR MOTOR KIT2.5 (17U110) | |
| 3 | 25M555 | GRACO AIR MOTOR REPAIR KIT;T3(25M555) | |
| 4 | 24A351 | GRACO COMPLETE AIR VALVE REPLACEMENT KIT(24A351) | |
| 5 | 24A366 | GRACO PILOT VALVE MOTOR KIT ( 24A366) | |
| 6 | 24A579 | SMALL MOTOR MANIFOLD KIT(24A579) | |
| 7 | 15M291 | GRACO TOP MOTOR COVER 2.5 (15M291) | |
| 8 | 108993 | GRACO ORING PACKING (108993) | |
| 9 | 117370 | GRACO ORING PACKING (117370) | |
| 10 | 105444 | BALL .31250 (105444) | |
| 11 | 15M213 | GRACO MUFFLER 3/8 (15M213) | |
| 12 | 116343 | GRACO GROUND SCREW (116343) | |
| 13 | 15M314 | GRACO SCREW, HHC,5/1618 UNC2A X 5.5 ( 15M314) | |
| 14 | 15M289 | GRACO MOTOR CYLINDER 2.5 (15M289) |
