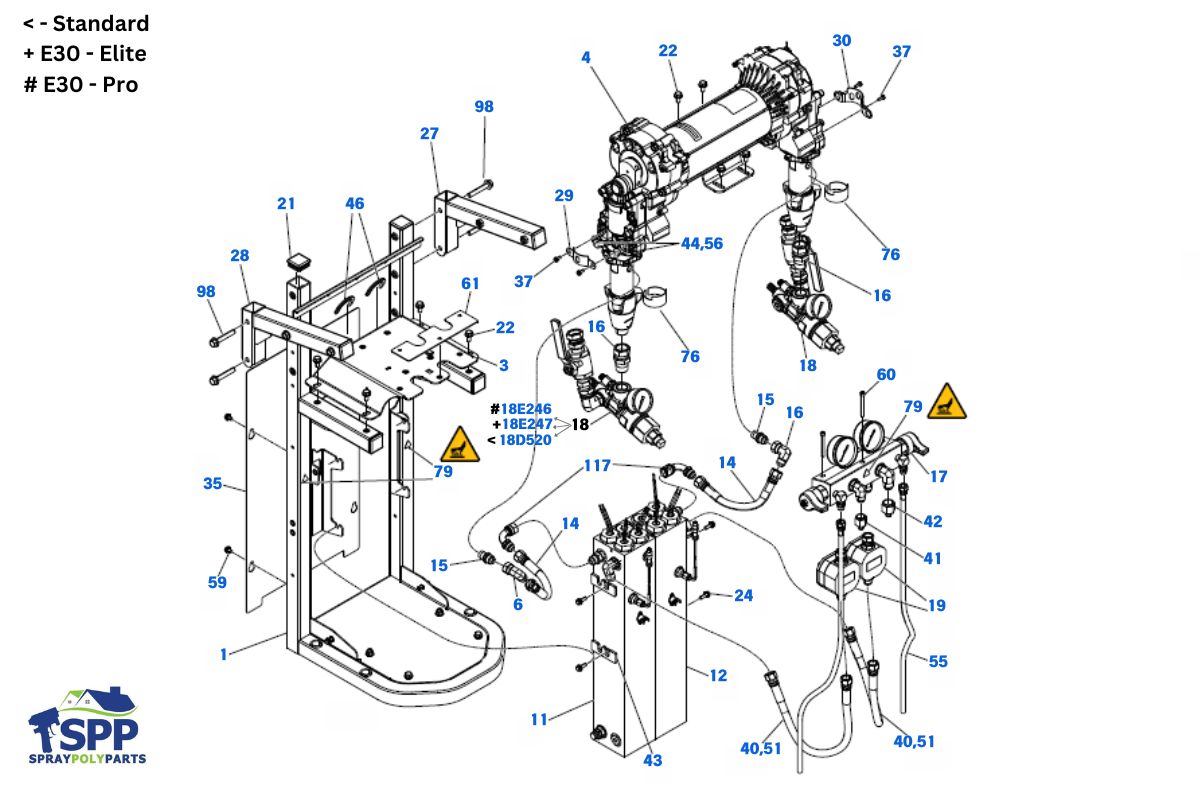

Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 2007103 | GRACO SYS SRG PROT MODULE (2007103) | |
| 2 | 118444 | GRACO HEX SLOT MACH SCREW (118444) | |
| 3 | 18E190 | MOTOR COVER W/FAN REPAIR KIT (18E190) | |
| 4 | 113796 | GRACO HEX HD FLANGED SCREW (113796) | |
| 5 | 114225 | GRACO EDGE PROTECTION TRIM (114225) | |
| 6 | 18E201 | GRACO LOWER SHROUDS R3 REPAIR KIT (18E201) | |
| 7 | 19C041 | GRACO PAINTED ISOLUBE R3 BRACKET (19C041) | |
| 8 | 112689 | GRACO BUTTON HD SCREW (112689) | |
| 9 | 25T859 | GRACO FLUID, 25 OZ (25T859) | |
| 10 | 18C779 | GRACO TSL BOTTLE CAP (18C779) | |
| 11 | 112738 | GRACO R3 GROMMET (112738) | |
| 12 | 18E274 | GRACO TSL TUBING KIT, 7.5FT (18E274) | |
| 13 | 25B524 | GRACO SNAP IN T CLIP CLIP (25B524) | |
| 14 | 102478 | GRACO TIE WIRING STRAP (102478) | |
| 15 | 16E254 | GRACO STRAIGHT MALE CONNECTOR FITTING (16E254) | |
| 16 | 133416 | GRACO 1/4 NPT SUCTION STRAINER (133416) | |
| 17 | 111194 | GRACO CAP FLANG HD SCREW (111194) | |
| 18 | 132560PKG | GRACO 80MM FAN FINGER GUARD (132560PKG) | |
| 19 | 132561PKG | GRACO FAN (132561PKG) | |
| 20 | 18E202 | GRACO TRANSFORMER WELDMENT COVER (18E202) | |
| 21 | 110996 | GRACO FLANGED HEX NUT (110996) | |
| 22 | 111800 | GRACO HEX HD CAP SCREW (111800) | |
| 23 | 110631 | GRACO SOCKET HD SCREW (110631) | |
| 24 | 24V023 | GRACO PAINTED 695 FRONT COVER (24V023) | |
| 25 | 18E130 | GRACO TRANSFORMER, 2790VA, 230/62 (18E130) |
