Related Diagrams

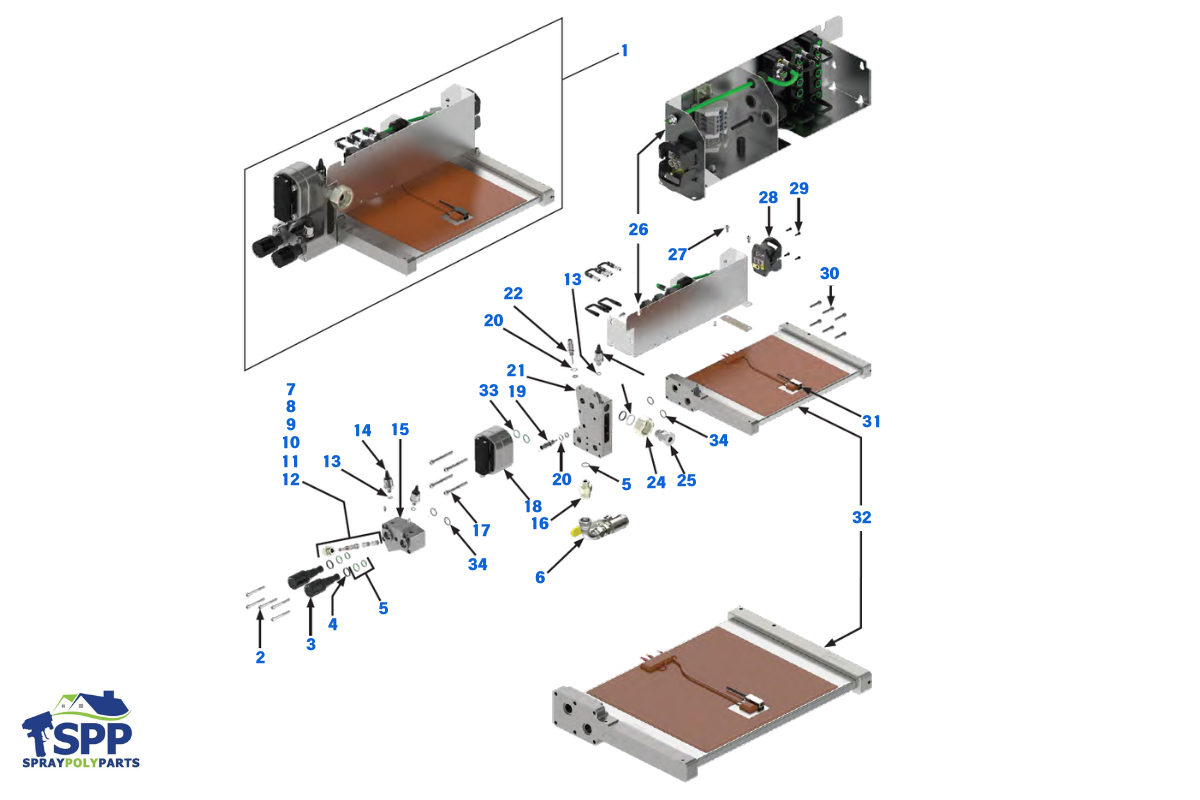

Low Press Module
Pump Module

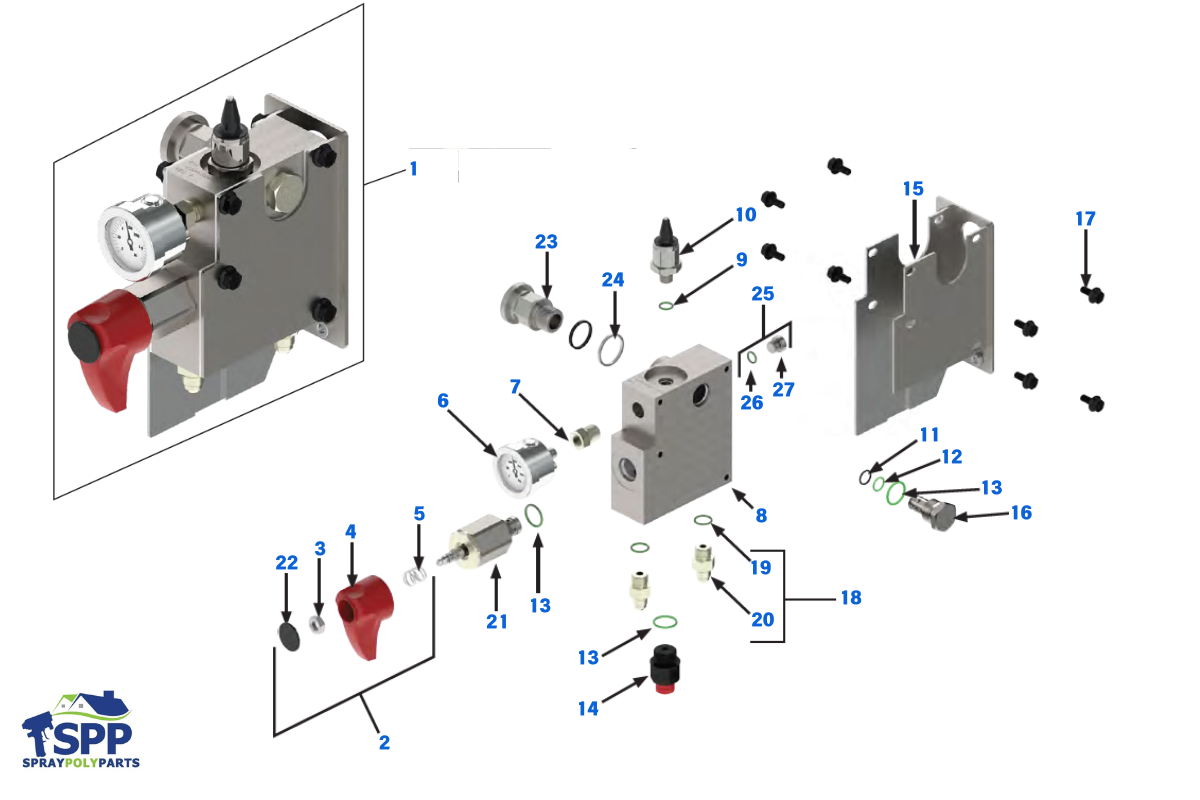

High Press Module

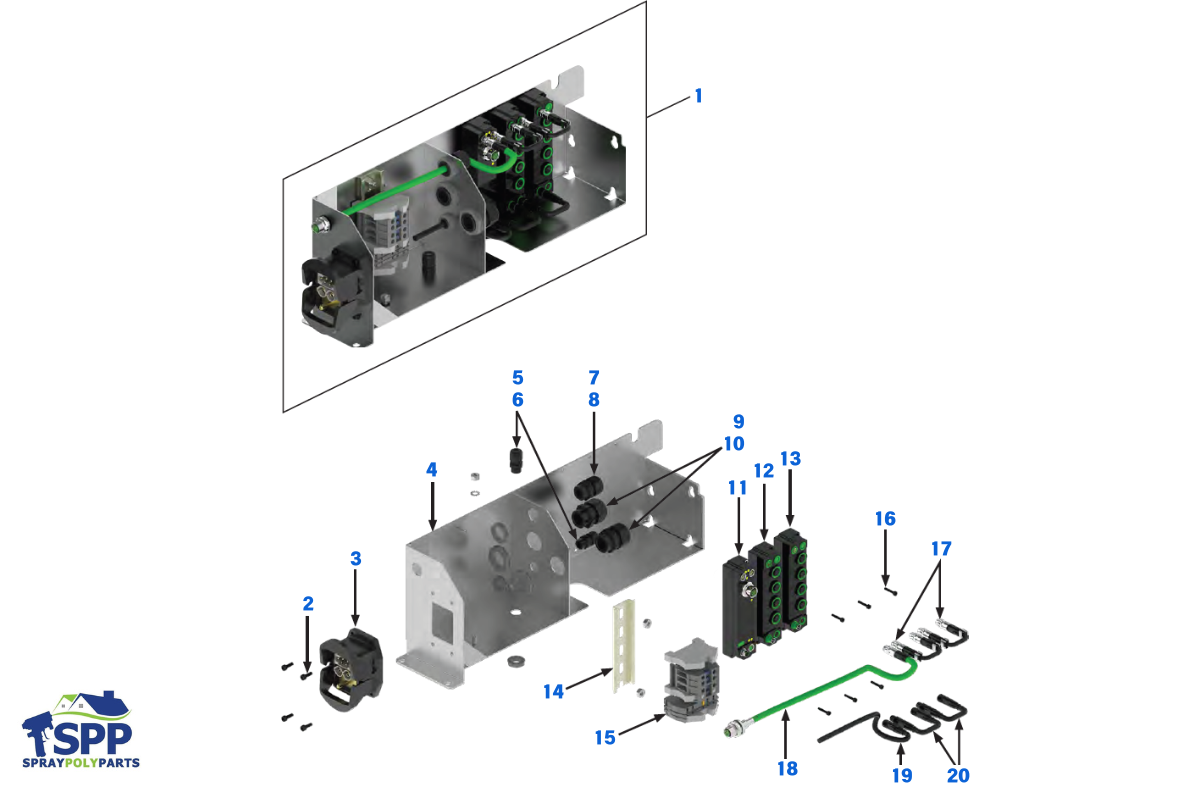

Pump I/O Module

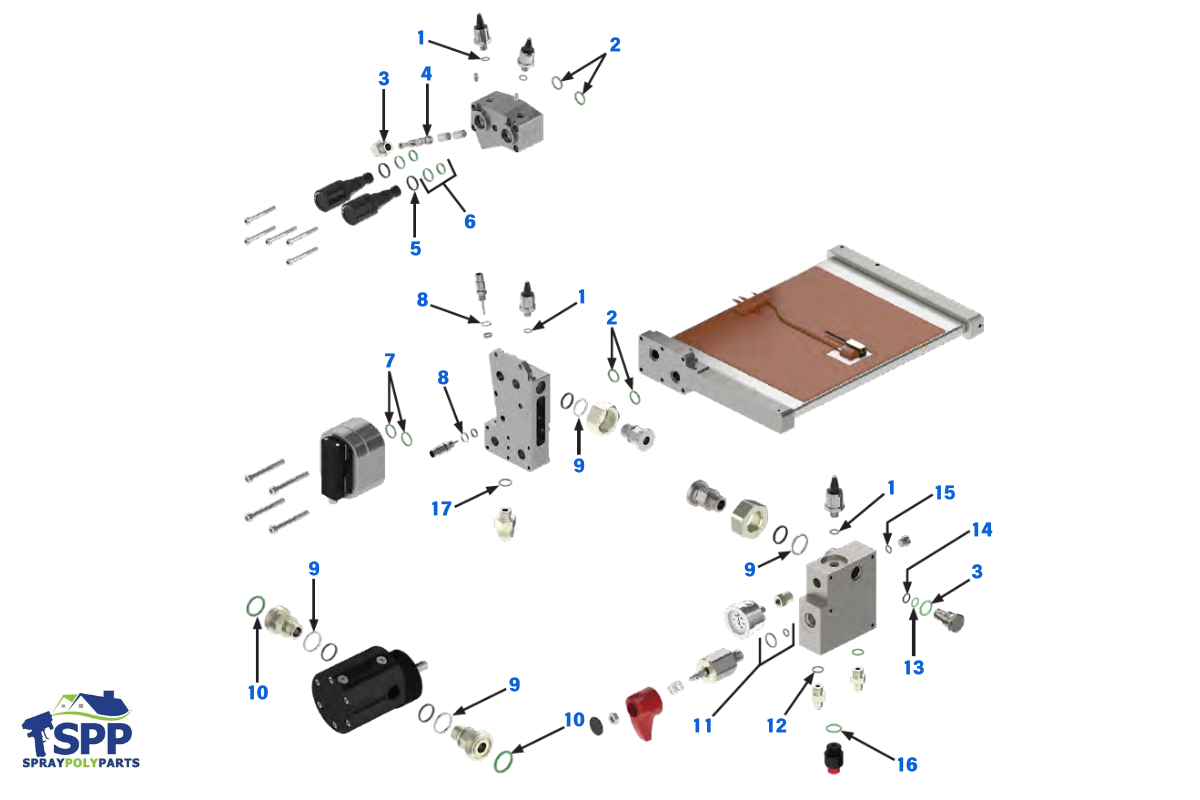

FM O-Rings & Seals

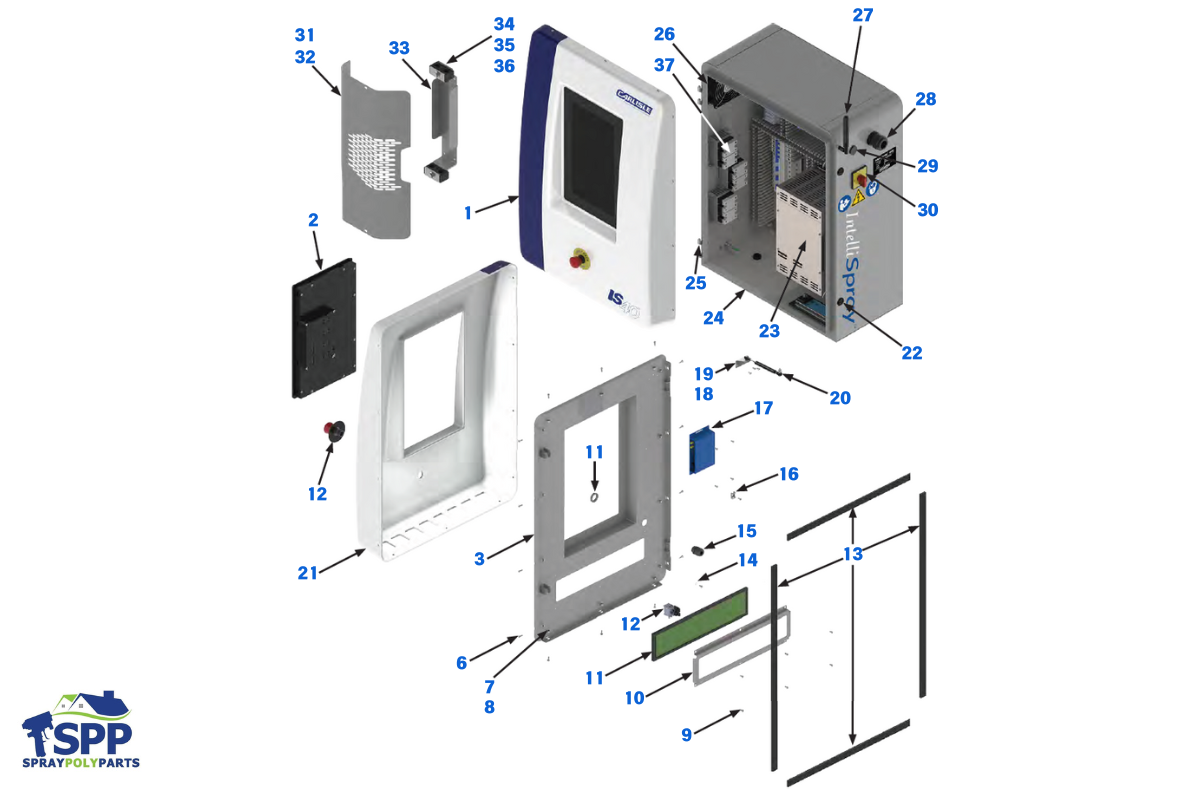

Control Mod Enclosure

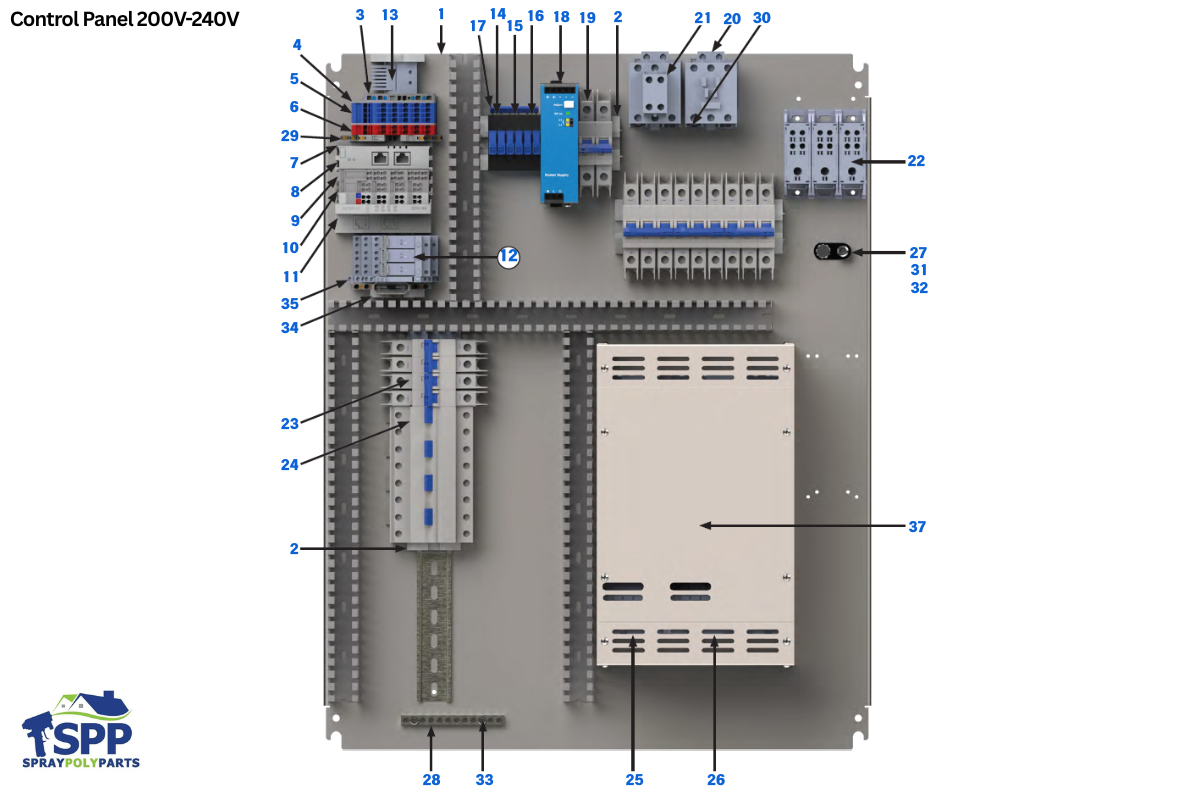

Control Panel 1/2

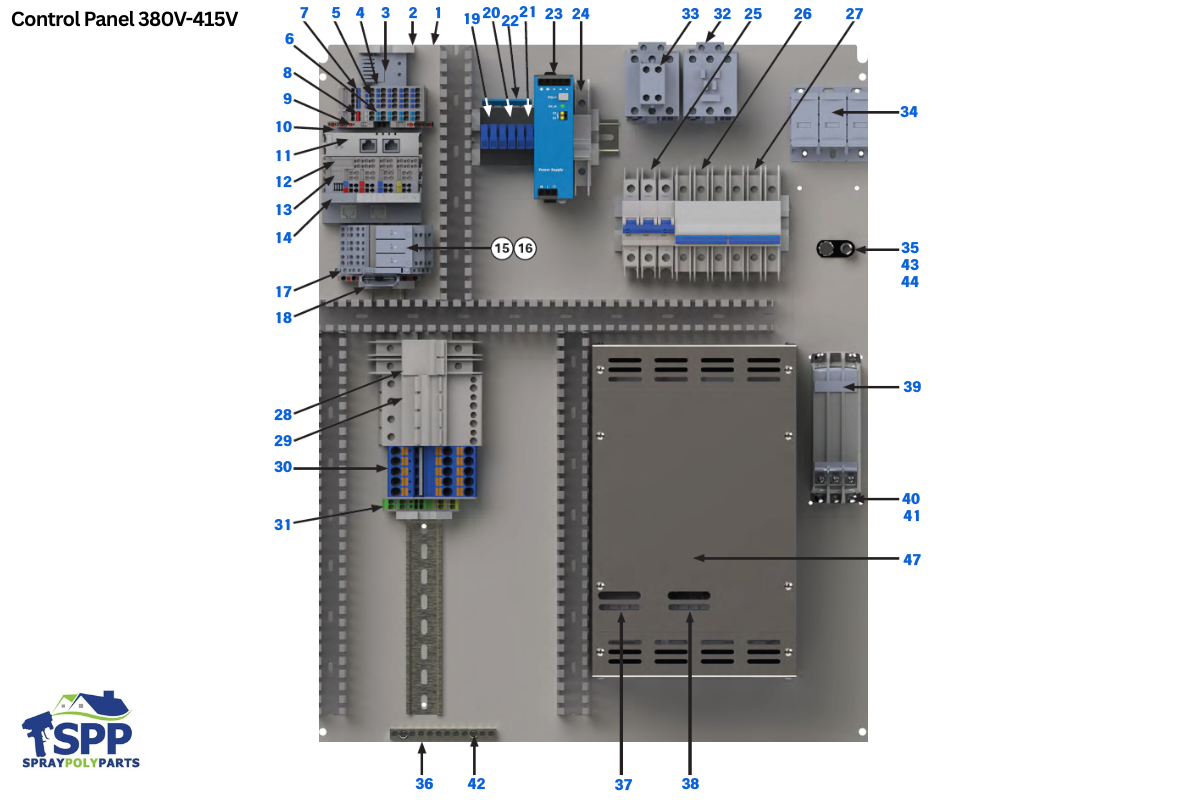

Control Panel 2/2
Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 341000 | BINKS 7D A FLUID MODULE (341000) | |
| 2 | 341001 | BINKS 7E B FLUID MODULE (341001) | |
| 3 | 341007 | BINKS POPULATED MODULAR HEATER ASSY (341007) | |
| 4 | 341005 | BINKS A FLUID MOD COVER KIT (341005) | |
| 5 | 341019 | BINKS B FLUID MOD COVER KIT (341019) | |
| 6 | 341048 | BINKS ELECTRIC ENCLOSURE ASSY (341048) | |
| 7 | 347705 | BINKS A SIDE HIGH PRESS MODULE (347705) | |
| 8 | 347697 | BINKS B SIDE HIGH PRESS MODULE (347697) | |
| 9 | 347593 | BINKS HANDLE KIT, RED RECIRCULATION A VALVE (347593) | |
| 10 | 347664 | BINKS HANDLE KIT, BLUE RECIRCULATION B VALVE (347664) |
