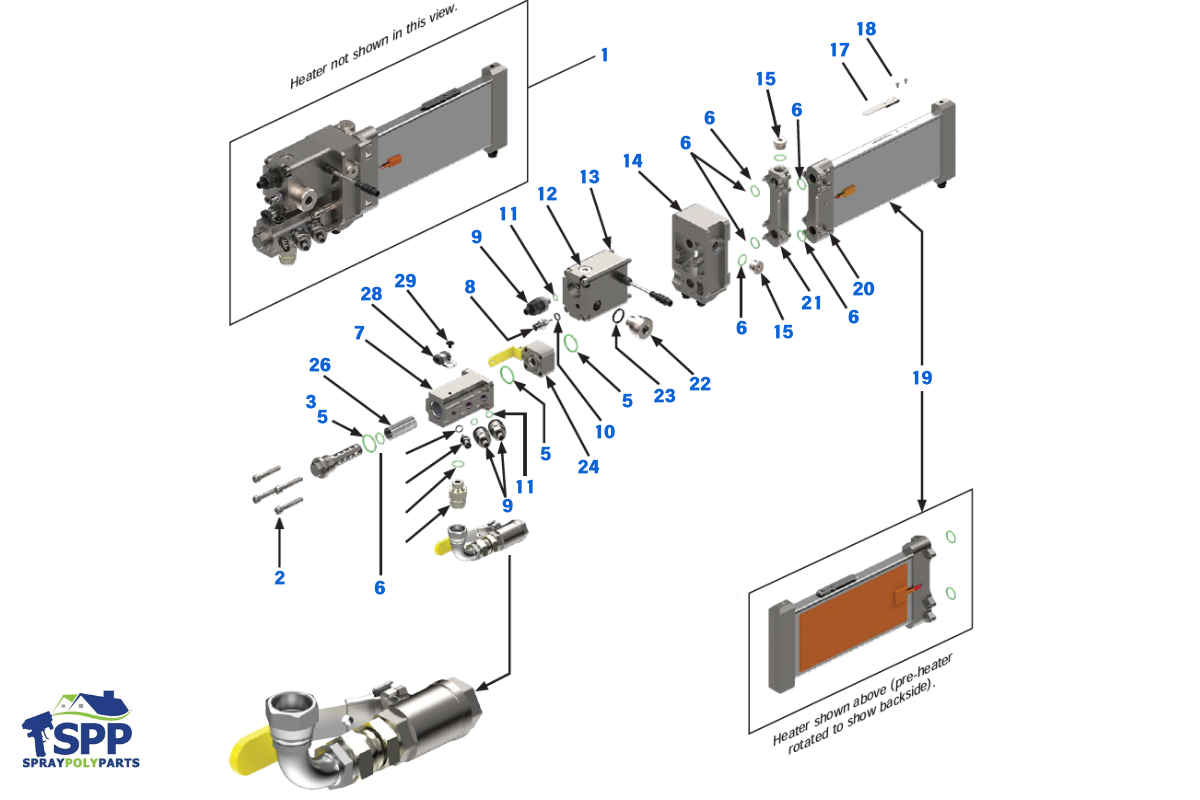

Low Pressure Module

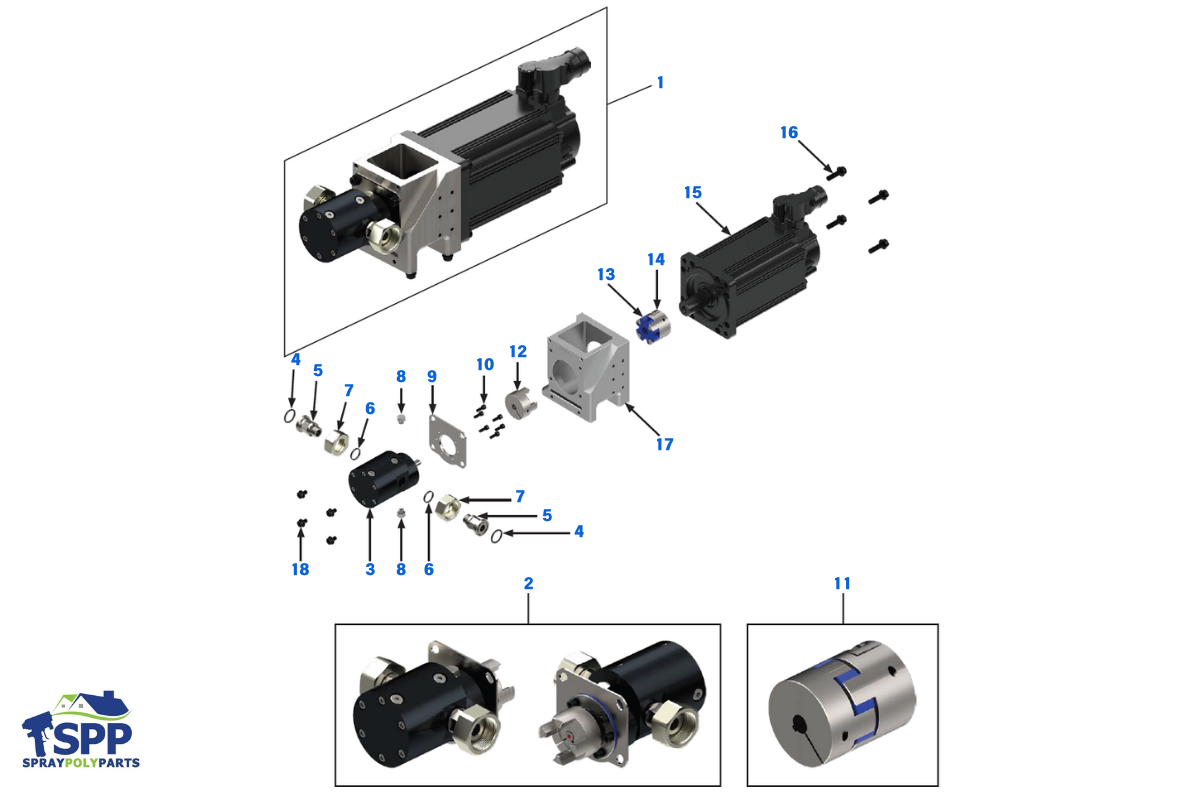

Pump Module

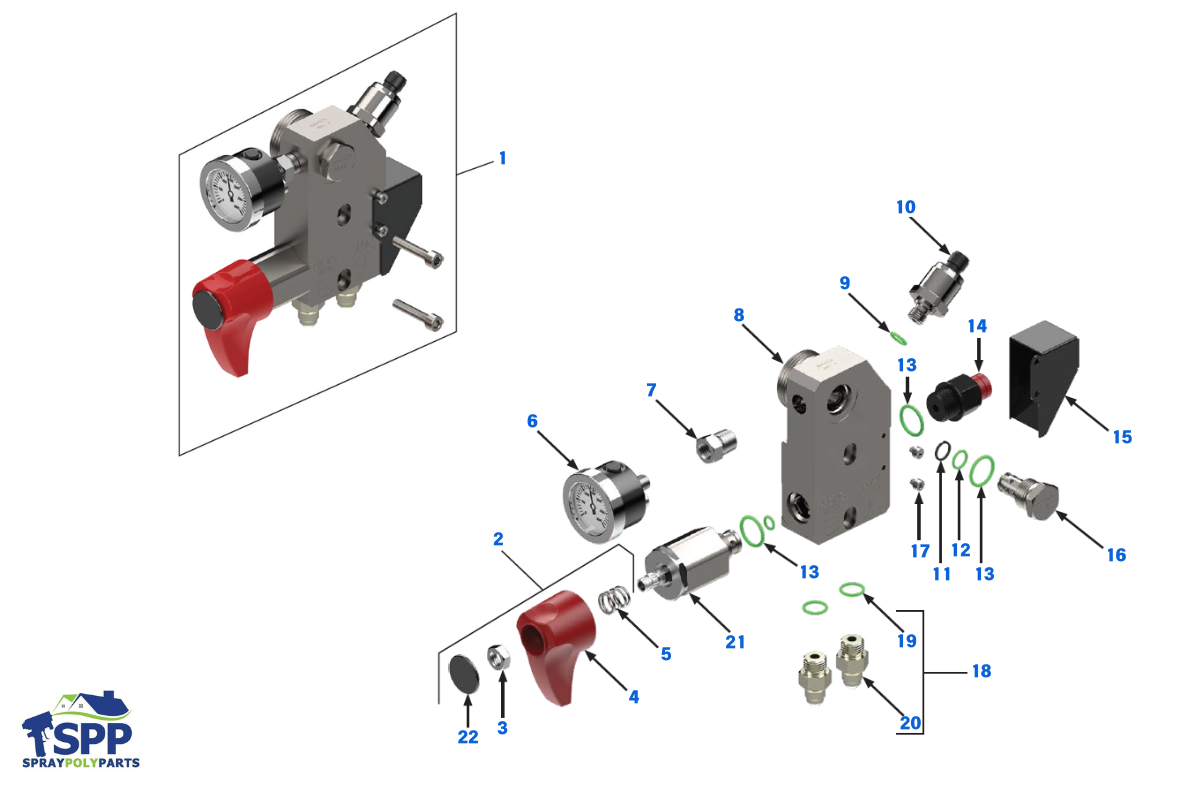

High Pressure Module

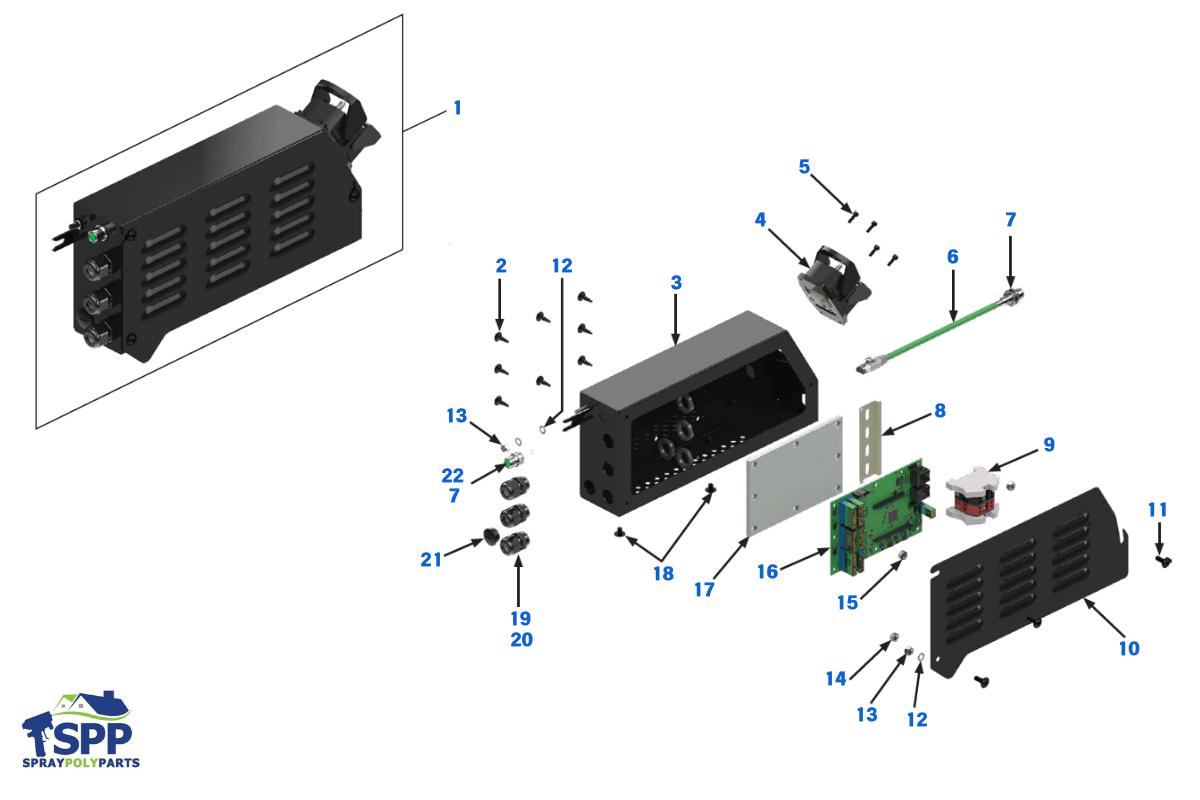

Pump I/O Module

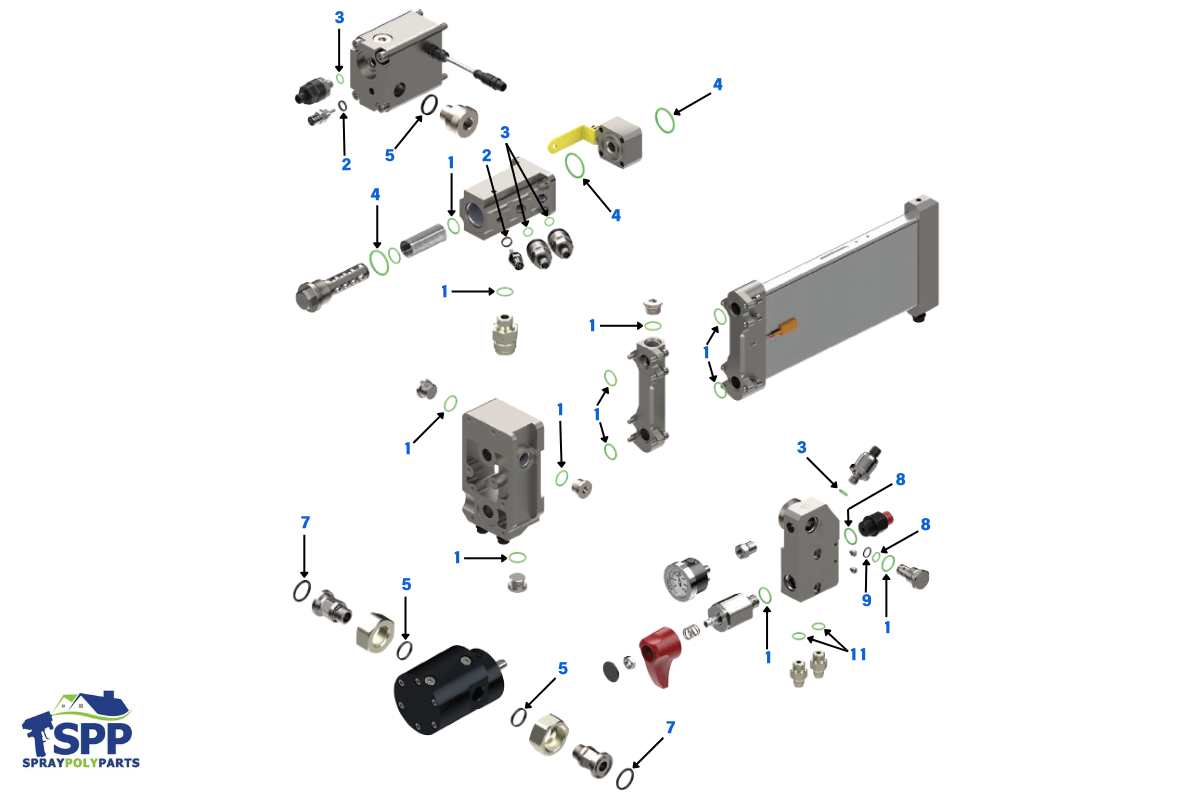

O-Rings & Seals

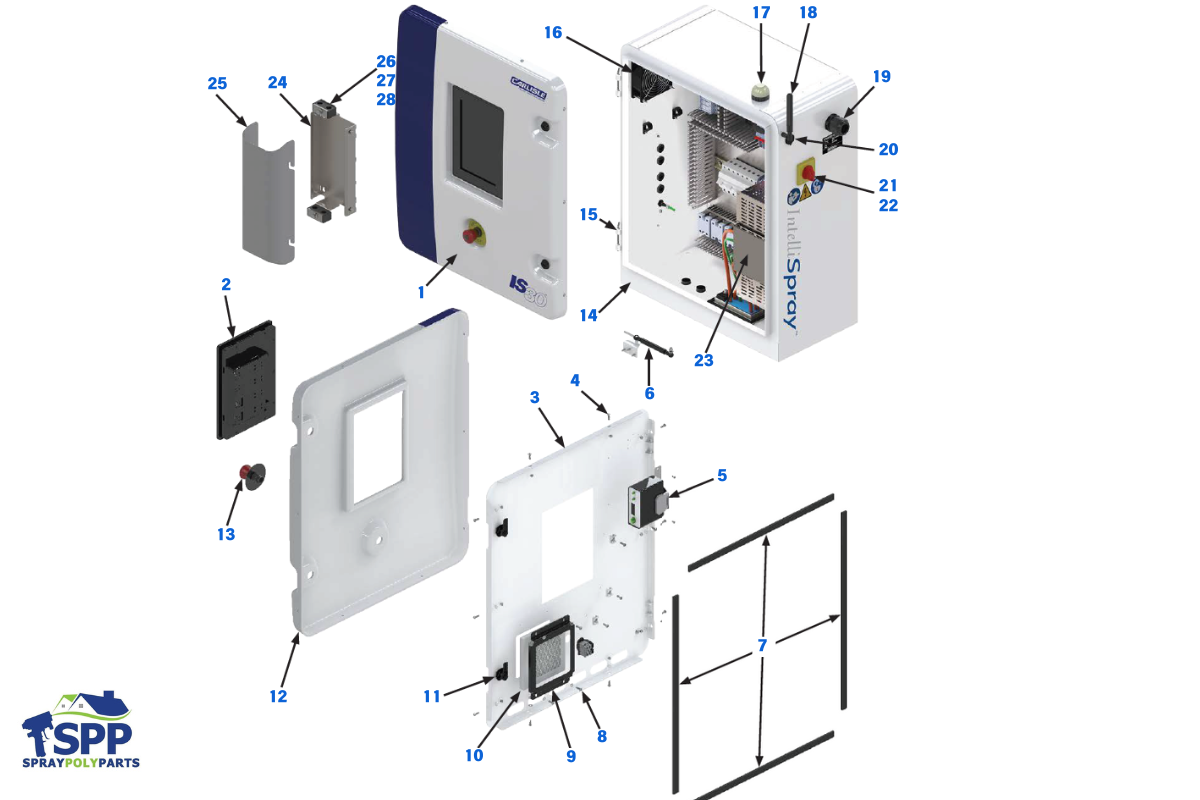

Control Module Enclosure

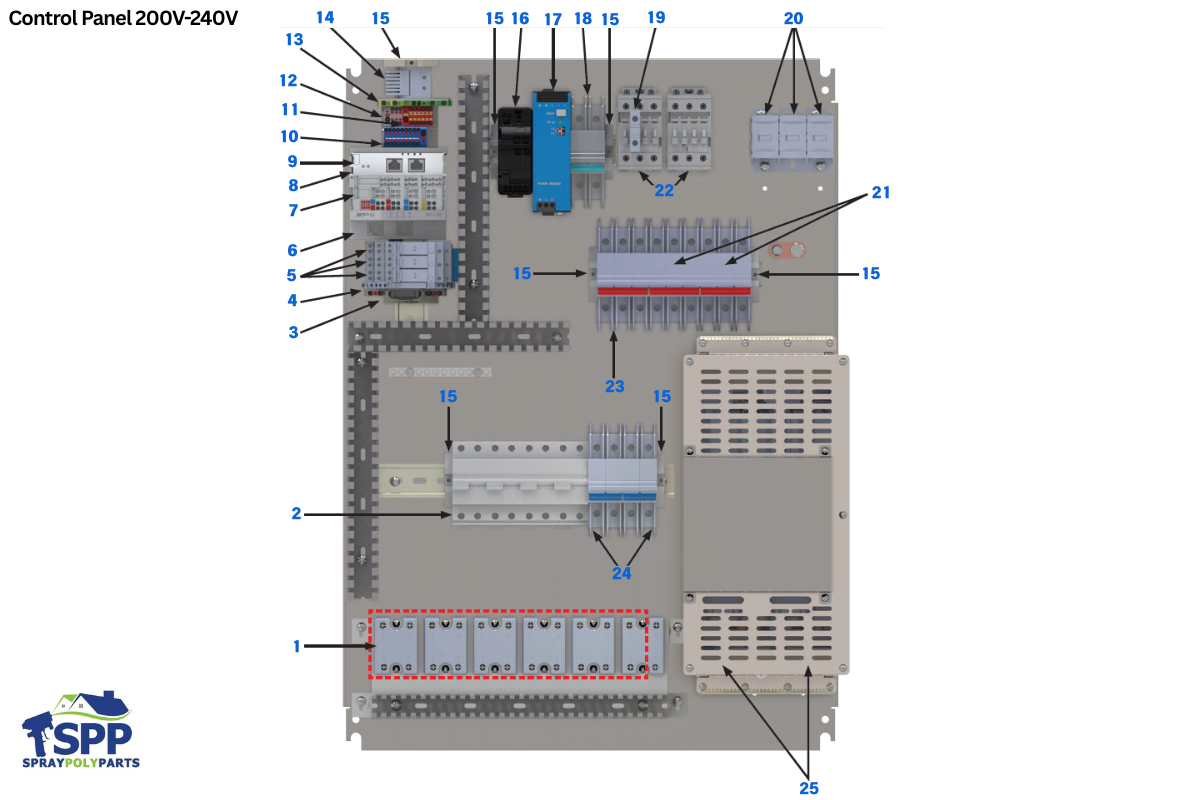

Control Panel 200V-240V

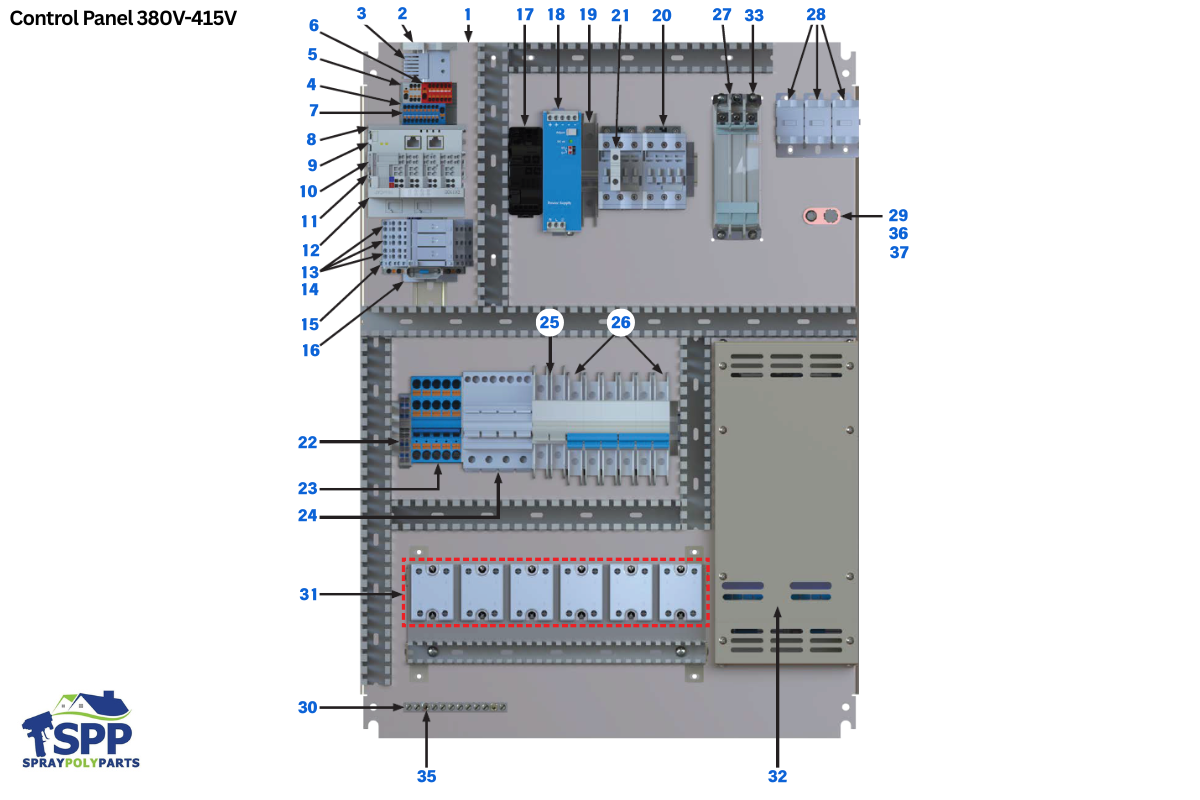

Control Panel 380V-415V
Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 347494 | BINKS A SIDE FLUID MODULE COVER (347494) | |
| 2 | 347495 | BINKS B SIDE FLUID MODULE COVER (347495) | |
| 3 | 347497 | BINKS PREHEATER MODULE COVER (347497) | |
| 4 | 347484 | BINKS A SIDE FLUID MODULE (347484) | |
| 5 | 347485 | BINKS B SIDE FLUID MODULE (347485) | |
| 6 | 347496 | BINKS LOW PRESSURE MODULE POPULATED (347496) | |
| 7 | 347498 | BINKS PUMP MODULE (347498) | |
| 8 | 347499 | BINKS HIGH PRESSURE MODULE BRACKET (347499) | |
| 9 | 347489 | BINKS A SIDE HIGH PRESSURE MODULE (347489) | |
| 10 | 347500 | BINKS B SIDE HIGH PRESSURE MODULE (347500) | |
| 11 | 347593 | BINKS HANDLE KIT, RED RECIRCULATION A VALVE (347593) | |
| 12 | 347664 | BINKS HANDLE KIT, BLUE RECIRCULATION B VALVE (347664) | |
| 13 | 347480 | BINKS PUMP I/O MODULECIRCUIT BOARD (347480) | |
| 14 | 347501 | BINKS A SIDE PUMP MODULE FRAME (347501) | |
| 15 | 347502 | BINKS B SIDE PUMP MODULE FRAME (347502) | |
| 16 | 347503 | BINKS CAPTIVE SCREW (347503) |
