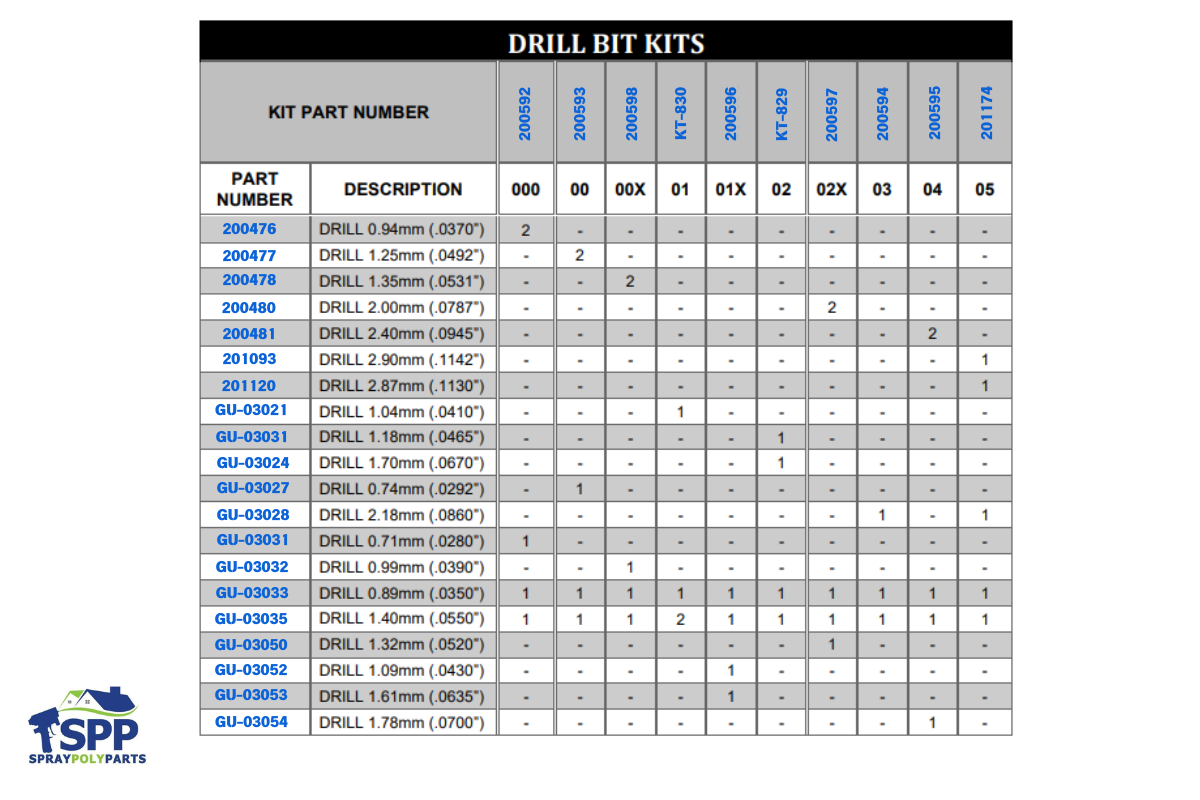

Drill Bits

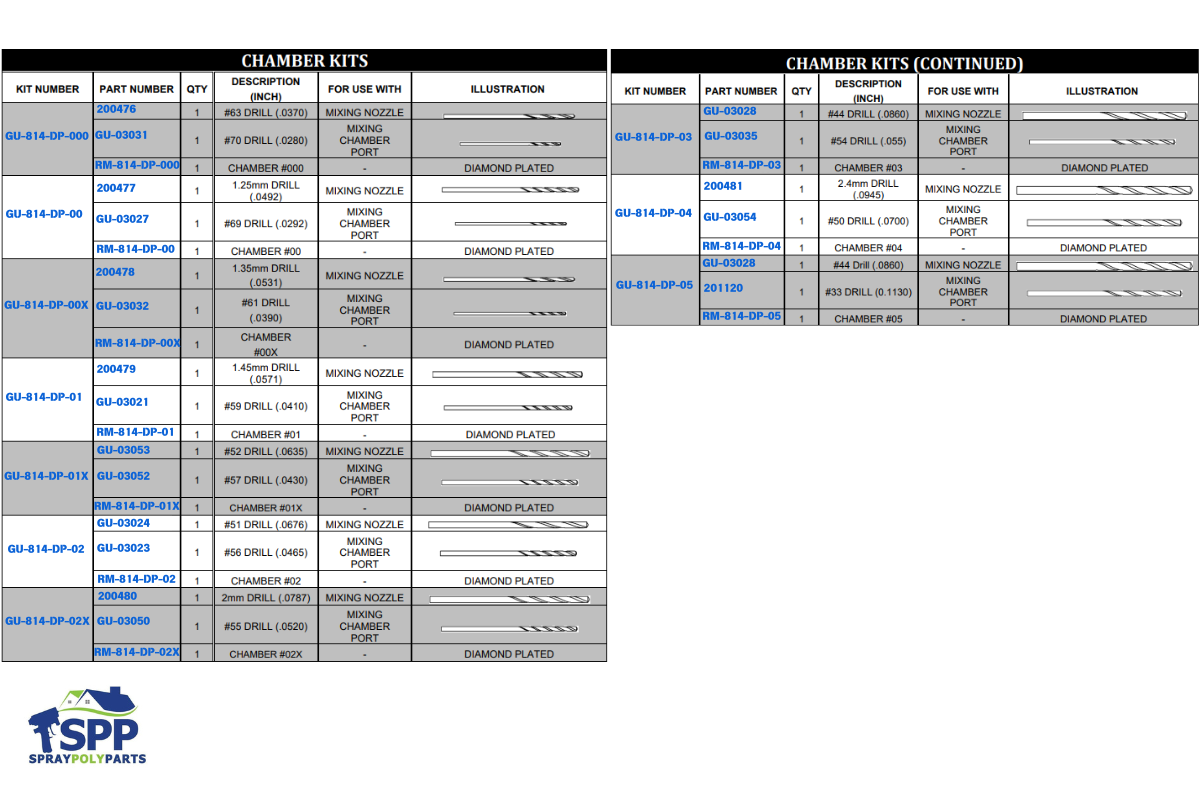

Chamber Kits

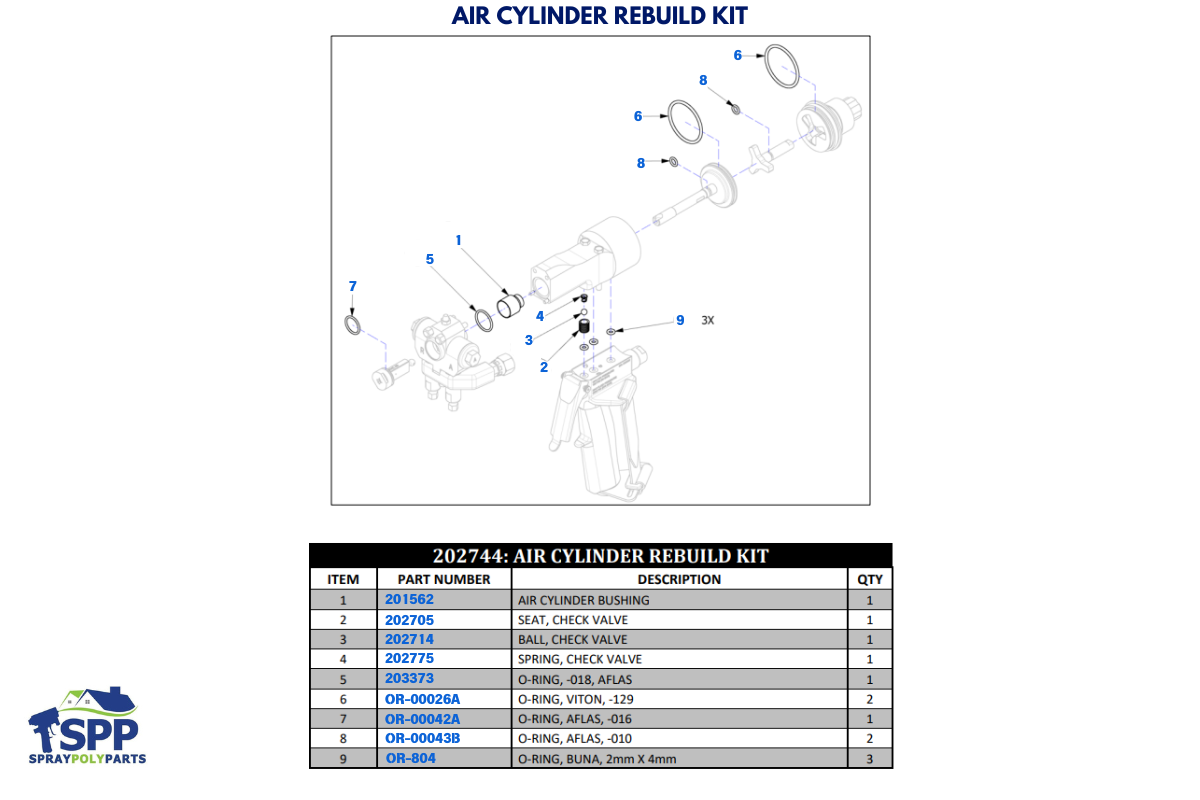

Air Cylinder

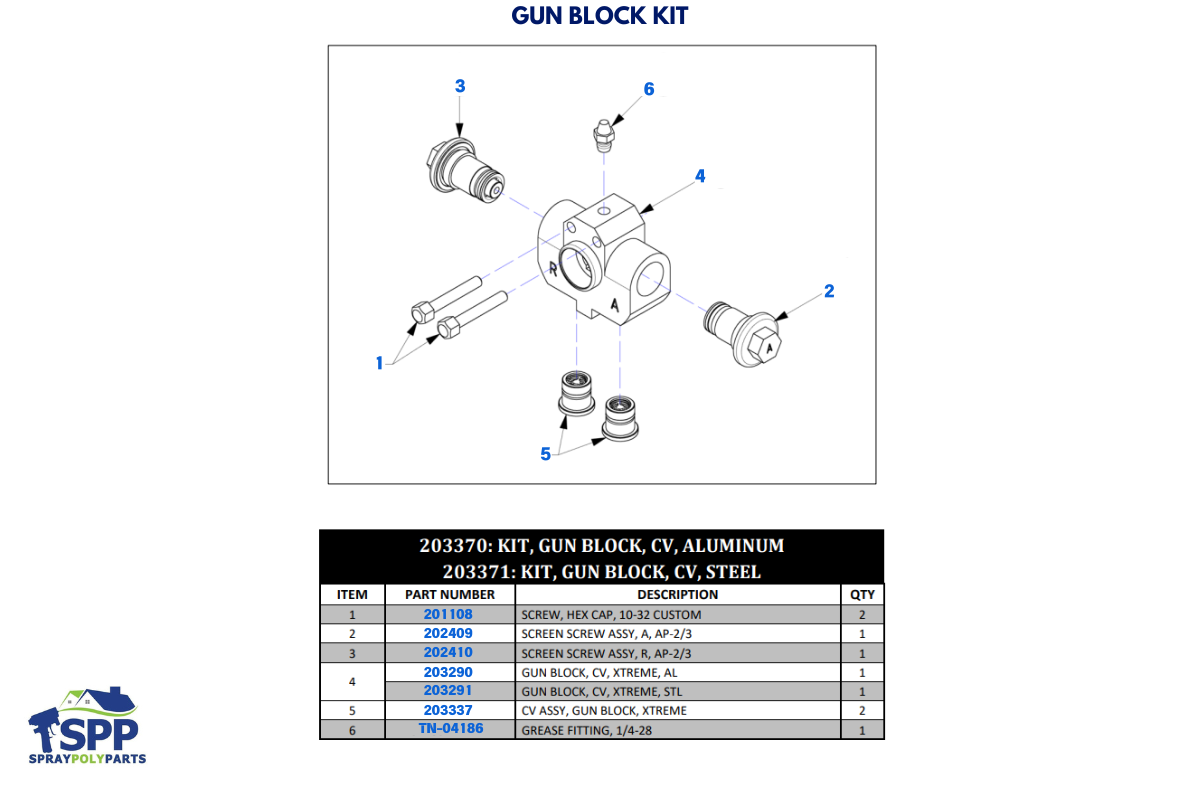

Gun Block

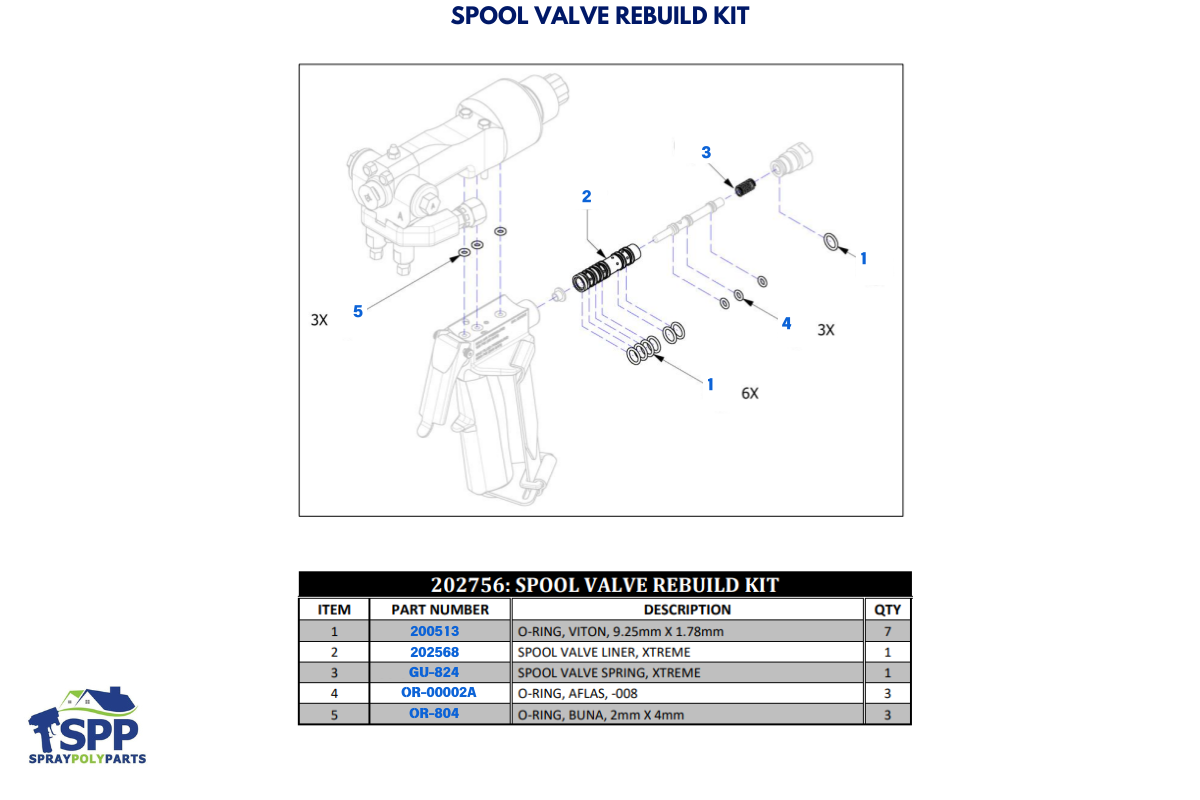

Spool Valve

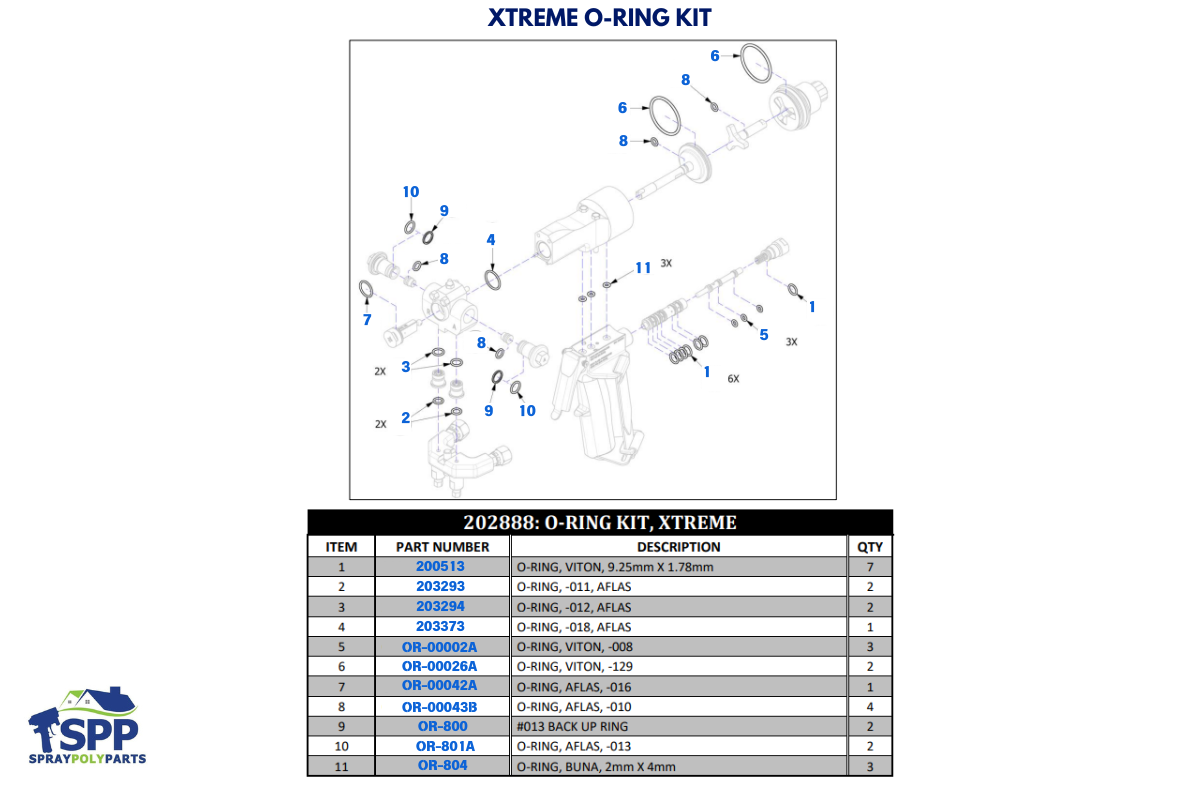

O-Rings

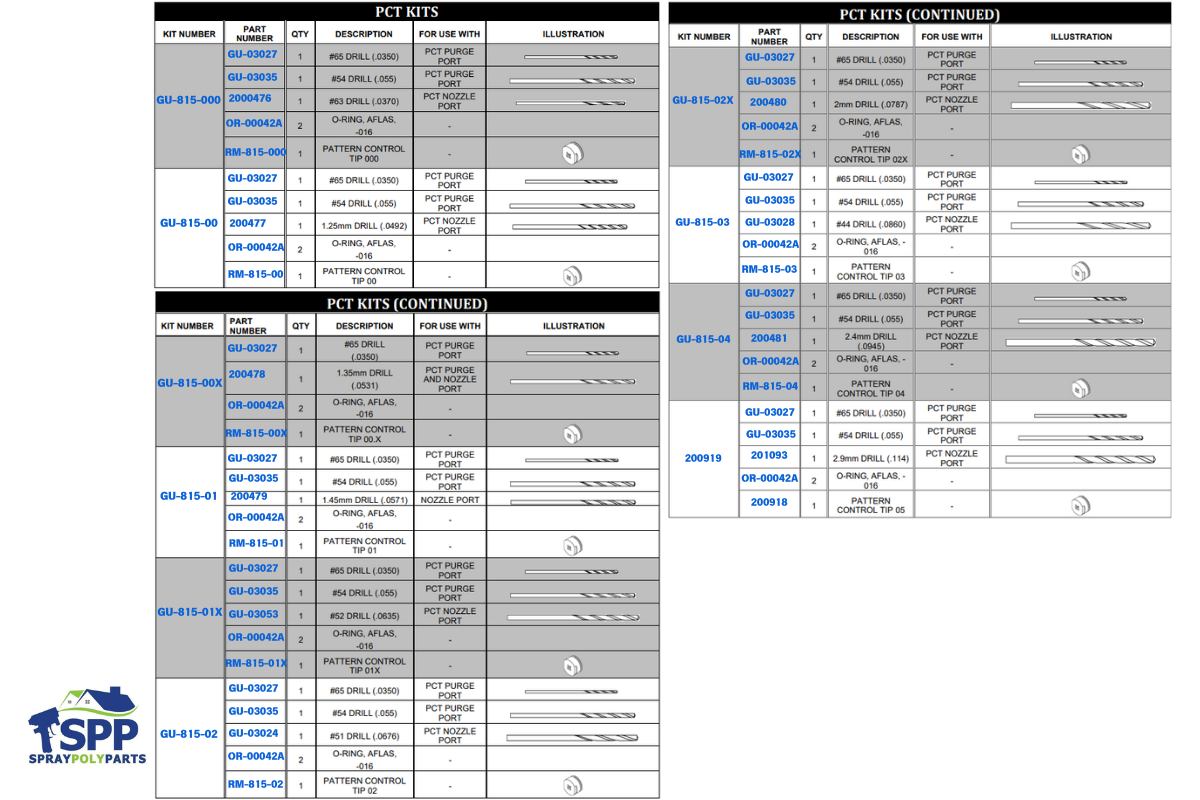

PCT Kits

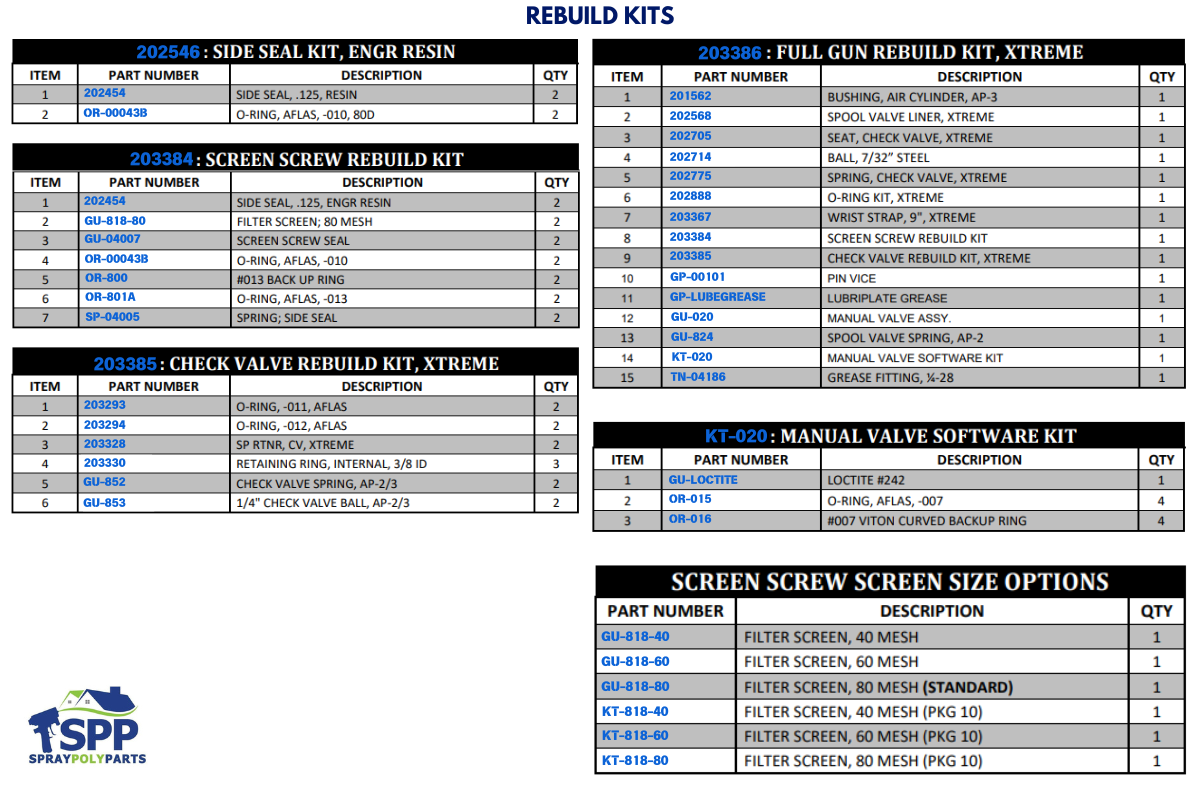

Rebuild Kits
Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 203291 | GUN BLOCK, CV, XTREME, STL (203291) | |
| 2 | 202410 | SCREEN SCREW ASSY, R, AP2/3 (202410) | |
| 3 | TN-04186 | PMC GREASE FITTING, 1/428 (TN04186) | |
| 4 | 203373 | ORING, 018, AFLAS (203373) | |
| 5 | 201562 | BUSHING, AIR CYLINDER, AP3 (201562) | |
| 6 | OR-00042A | ORING, AFLAS, 016 (OR00042A) | |
| 7 | 201108 | SCREW, HEX CAP, 1032 CUSTOM (201108) | |
| 8 | 202409 | SCREEN SCREW ASSY, A, AP2/3 (202409) | |
| 9 | 203337 | CV ASSY, GUN BLOCK, XTREME (203337) | |
| 10 | GU-815-000 | PCT 000 RND W/DRILLS (GU815000) | |

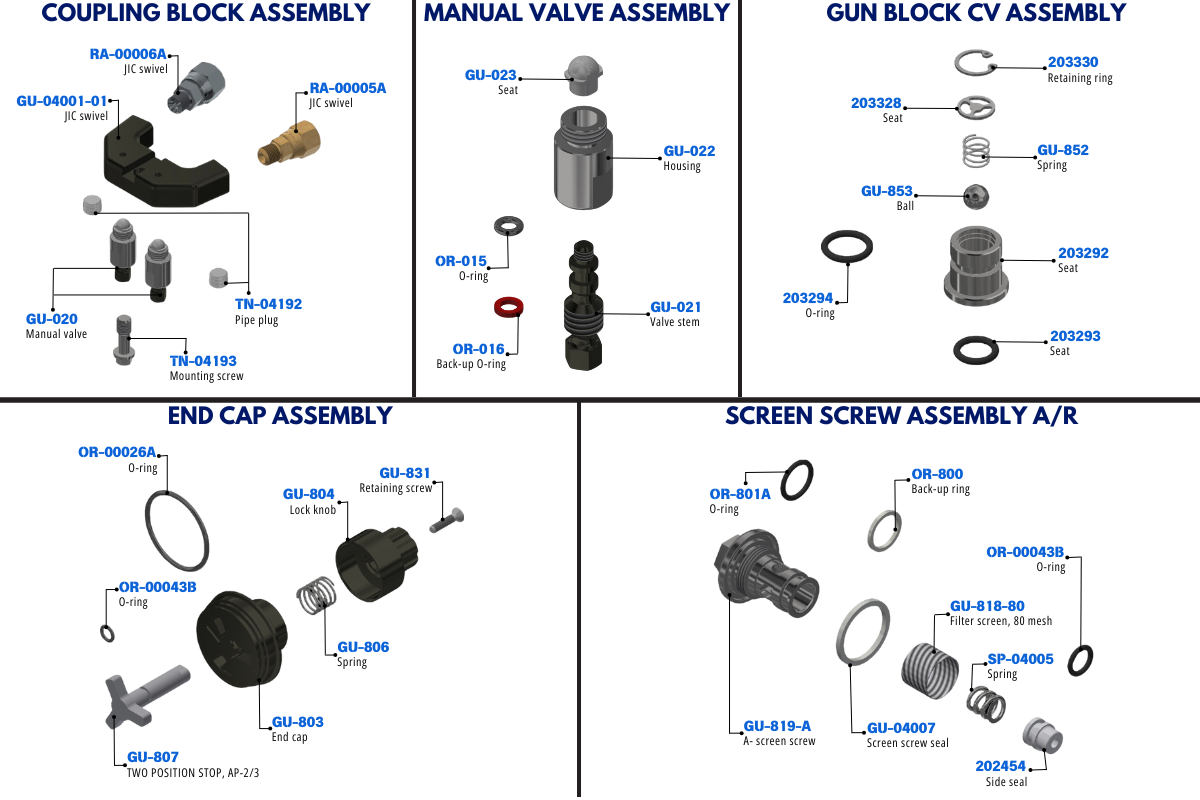

| 11 | GU-04001 | COUPLING BLOCK ASSEMBLY, PMC (GU04001) | |
| 12 | 203369 | PMC, PLUG ASSEMBLY, XTREME (203369) | |
| 13 | 203367 | WRIST STRAP, 9", XTREME (203367) | |
| 14 | 200673 | PMC, TRIGGER, AP3 (200673) | |
| 15 | 203351 | HANDLE, ERGO, XTREME (203351) | |
| 16 | GU-825-2 | LINER BUSHING | |
| 17 | 202568 | SPOOL VALVE LINER, XTREME (202568) | |
| 18 | 202569 | SPOOL VALVE, XTREME (202569) | |
| 19 | 201110 | SHOULDER BOLT, 1/8D, 1/8L, SS (201110) | |
| 20 | OR-804 | PMC, ORING, BUNA, 2mm x 4mm (OR804) | |
| 21 | 202713 | PMC, SET SCREW, #832 x 3/16, SS (202713) | |
| 22 | 200513 | PMC, ORING, VITON, 9.25 x 1.78MM (200513) | |
| 23 | OR-00002A | PMC, ORING, 008, VITON | |
| 24 | 202716 | CYLINDER, PINNED, XTREME (202716) | |
| 25 | 203350 | PISTON, ASSEMBLY, XTREME (203350) | |
| 26 | 201109 | XTREME, HHCS, 1024 x 1.750, ZP (201109) | |
| 27 | OR-00043B | PMS, ORING, AFLAS 80D, 010 (OR00043B) | |
| 28 | OR-00026A | ORING, VITON, 129 (OR00026A) | |
| 29 | GU-844 | XTREME, END CAP ASSEMBLY, AP2/3 (GU844) | |
| 30 | GU-833 | XTREME, HOSE ADAPTER, AP2 (GU833) | |
| 31 | GU-824 | XTREME, SPOOL VALVE SPRING, AP2 (GU824) | |
| 32 | GU-814-DP-000 | MIXING CHAMBER, 000 W/DRILLS, DP (GU814DP000) | |
| 33 | GU-814-DP-00 | CHAMBER, 00 WDRILLS, DP (GU814DP00) | |
| 34 | GU-814-DP-00X | CHAMBER, 00.5 W/DRILLS, DP (GU814DP00X) | |
| 35 | GU-814-DP-01 | CHAMBER, 01 W/DRILLS, DP (GU814DP01) | |
| 36 | GU-814-DP-01X | CHAMBER, 01.5 W/DRILLS, DP (GU814DP01X) | |
| 37 | GU-814-DP-02 | CHAMBER, 02 W/DRILLS, DP (GU814DP02) | |
| 38 | GU-814-DP-02X | CHAMBER, 02.5 W/DRILLS, DP (GU814DP02X) | |
| 39 | GU-814-DP-03 | CHAMBER, 03 W/DRILLS, DP (GU814DP03) | |
| 40 | GU-814-DP-04 | CHAMBER, 04 W/DRILLS, DP (GU814DP04) | |
| 41 | GU-814-DP-05 | CHAMBER, 05 W/DRILLS, DP (GU814DP05) |
