Related Diagrams

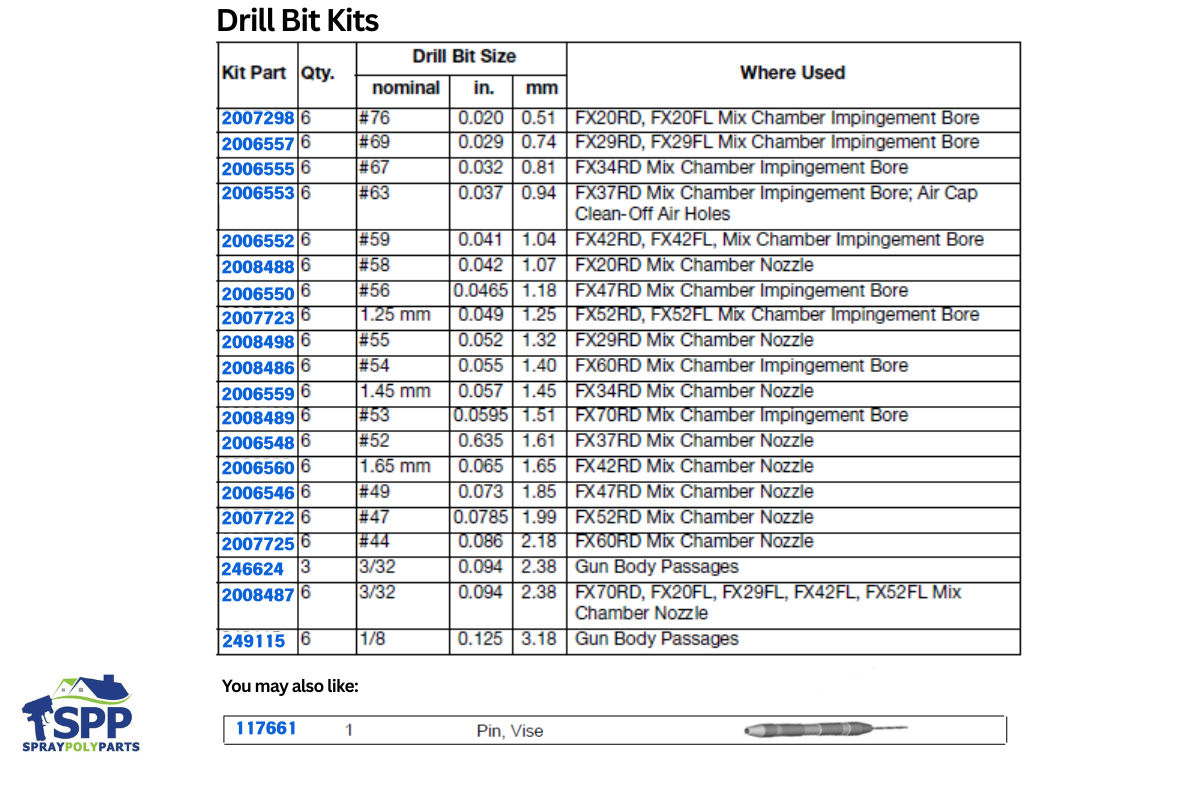

Drill Bits

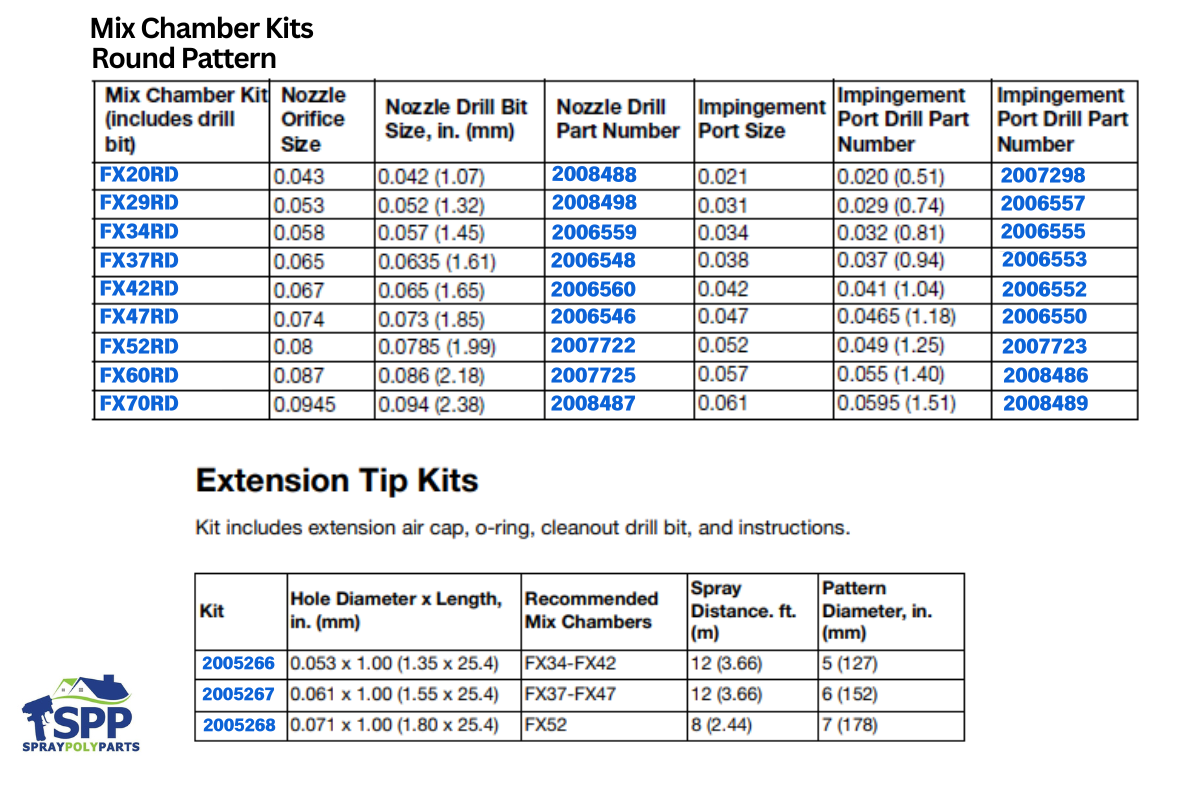

Mix Chambers

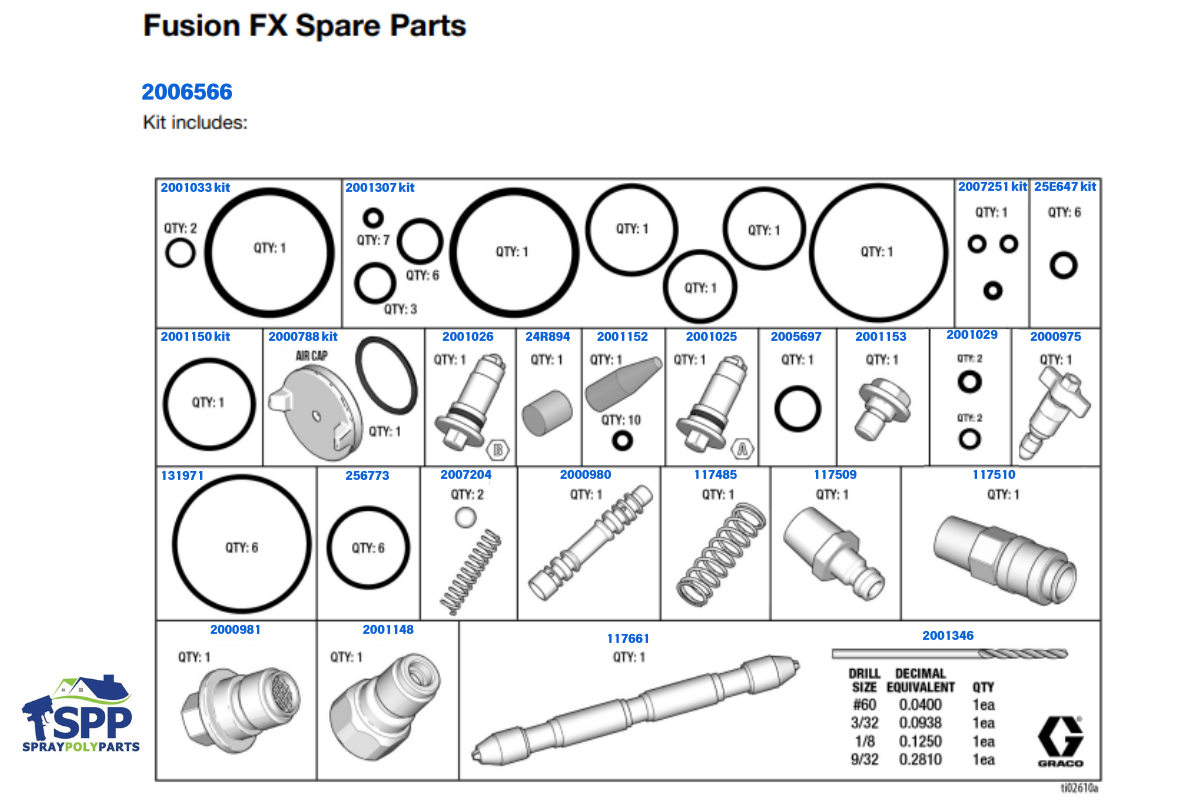

Spare Parts

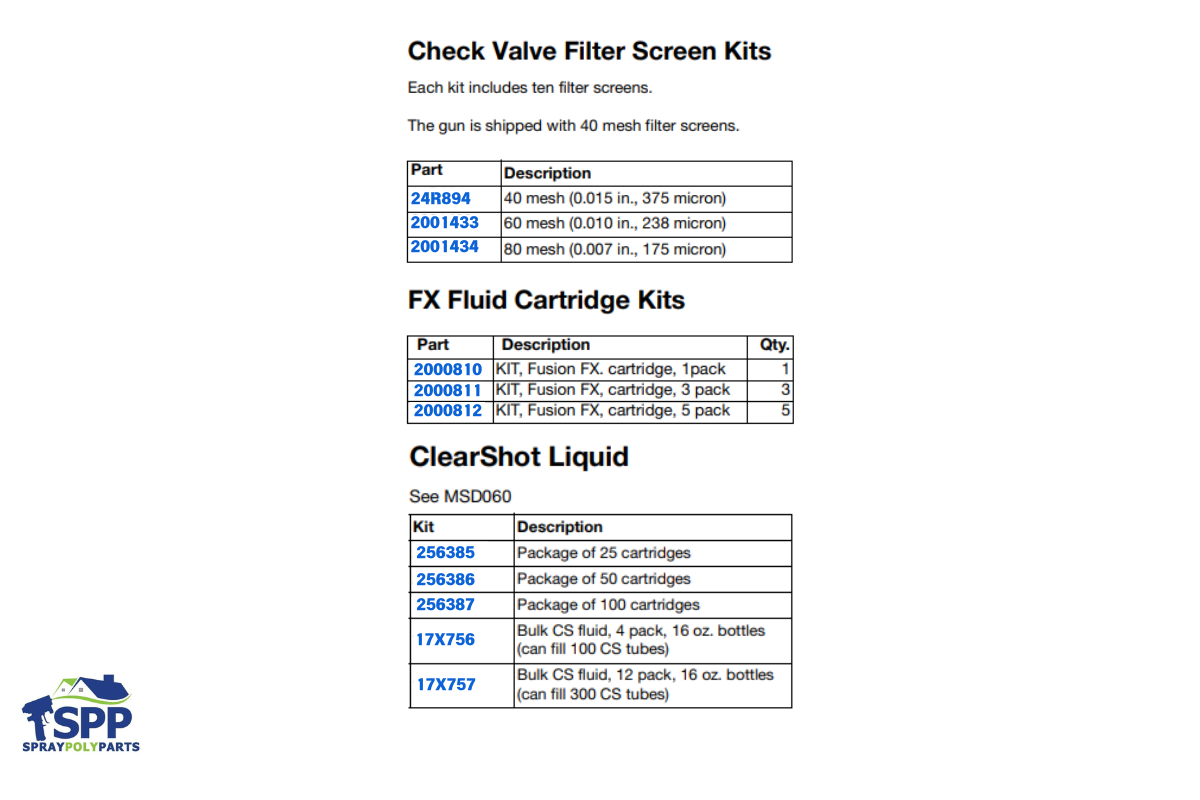

Extras

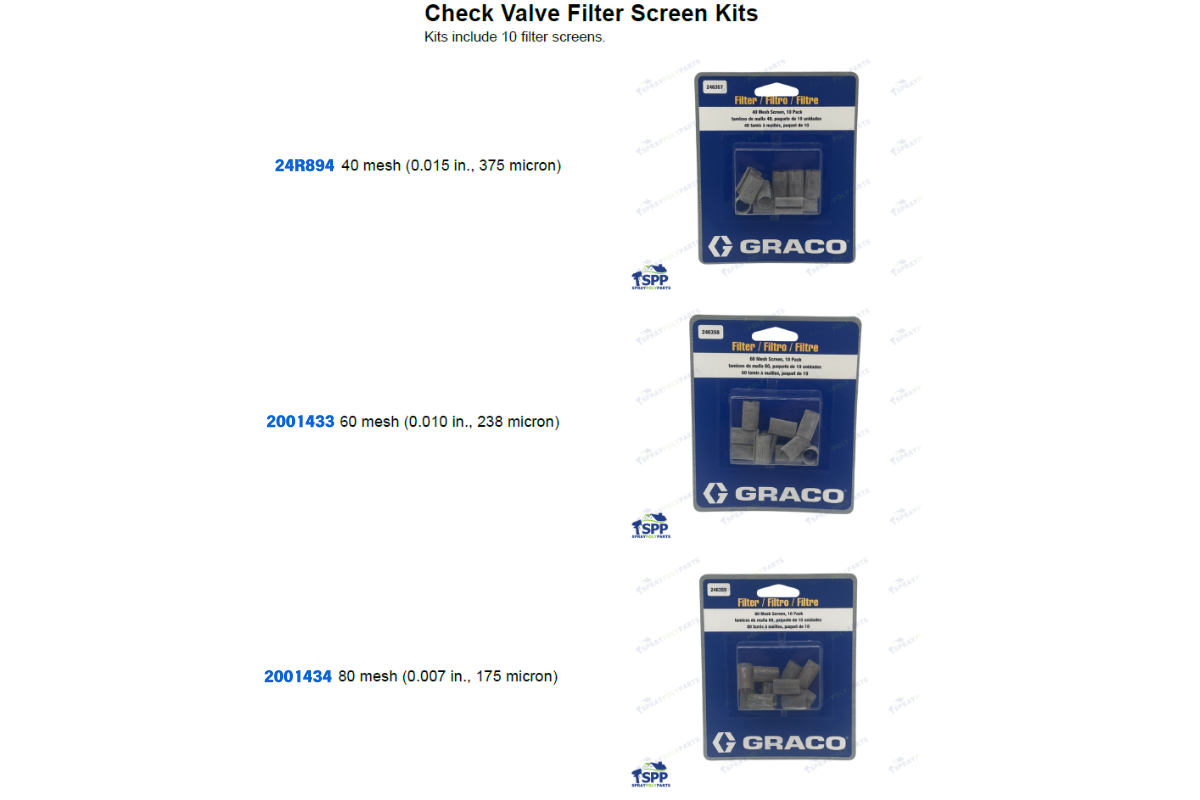

Check Valve Filter Kits

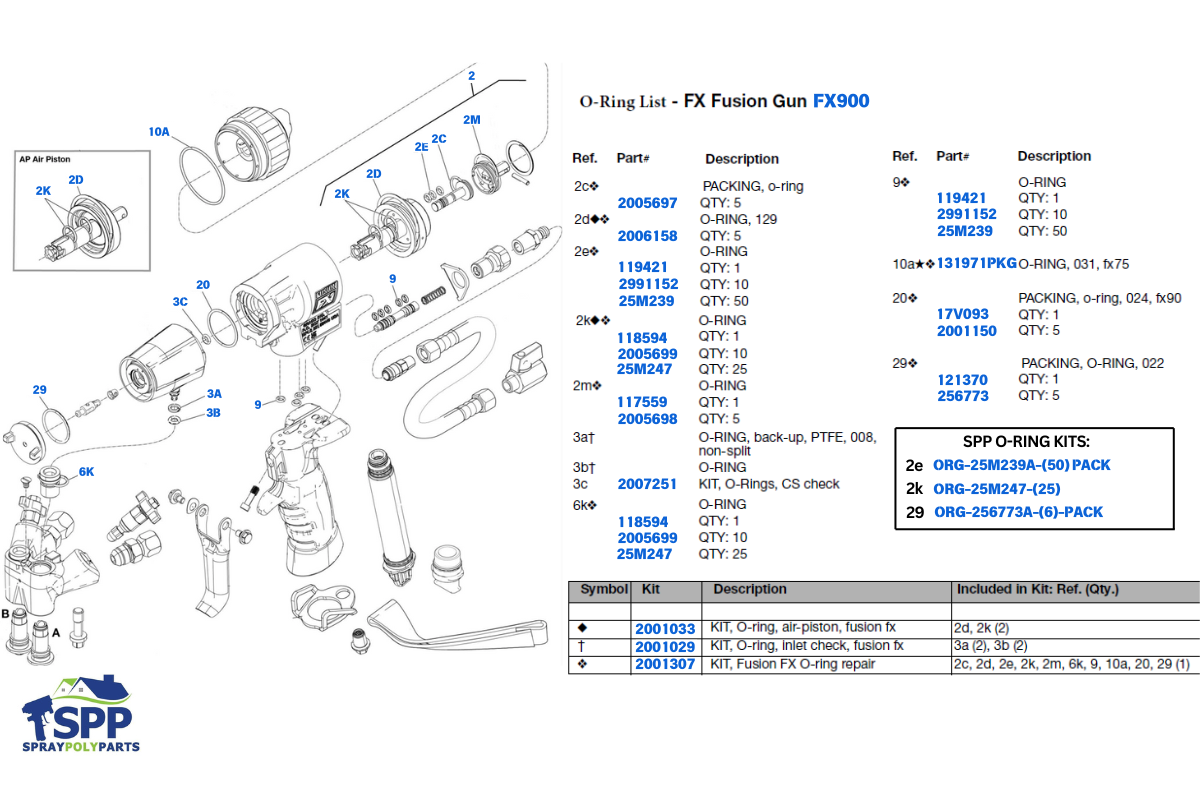

O-Rings
Lube & Grease
Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 2000788 | ROUND AIR CAP w/ ORING (2000788) | |
| 2 | 256773 | 6PK ORING FUSIONCS SM HSG KIT (256773) | |
| 3 | 2005366 | 10PK CHAMBER SEAL (2005366) | |
| 4 | 2007251 | CS CHECK ORING KIT (2007251) | |
| 5 | 2000810 | FUSION FX CARTRIDGE KIT (2000810) | |
| 6 | 2001027 | FUSION FX YOKE NEEDLE KIT (2001027) | |
| 7 | 2001028 | FUSION FX 10PK NEEDLES KIT (2001028) | |
| 8 | 17V093 | FX90 024 ORING PACKING (17V093) | |
| 9 | 2000973 | FUSION FX AIR SECTION BODY KIT (2000973) | |
| 10 | 118594 | Oring Fusion FX (118594) | |
| 11 | 2000979 | FUSION FX AP AIR PISTON KIT (2000979) | |
| 12 | 2000978 | FUSION FX CS AIR PISTON KIT (2000978) | |
| 13 | 2001166 | FUSION FX CS AIR PISTON KIT (2001166) | |
| 14 | 2001031 | FUSION FX DOSING PISTON KIT (2001031) | |
| 15 | 119421 | ORing #007 AP Fusion FX (119421) | |
| 16 | 2001032 | FUSION FX SAFETY STEM KIT (2001032) | |
| 17 | 131971PKG | GRACO ORING (131971PKG) | |
| 18 | 2000975 | FUSION FX MANIFOLD VALVE KIT (2000975) | |
| 19 | 2000974 | FUSION FX MANIFOLD KIT (2000974) | |
| 20 | 24R894 | FILTER KIT (24R894) | |
| 21 | 2001025 | FUSION FX ASIDE FILTER HOUSING KIT (2001025) | |
| 22 | 2001026 | FUSION FX BSIDE FILTER HOUSING KIT (2001026) | |
| 23 | 2001170 | FUSION FX MANF BOLT KIT (2001170) | |
| 24 | 2000715 | FUSION FX CS TUBE PLUG KIT (2000715) | |
| 25 | 2006912 | LOWER STRAP BRACKET (2006912) | |
| 26 | 2000972 | FUSION FX HANDLE KIT (2000972) | |
| 27 | 127597 | MXF #5 JICX#5 JIC SWIVEL FITTING (127597) | |
| 28 | 127596 | MXF #6 JICX#6 JIC SWIVEL FITTING (127596) | |
| 29 | 2001151 | HANDLE BOLT KIT (2001151) | |
| 30 | 2001153 | FUSION FX TRIGGER BOLT KIT (2001153) | |
| 31 | 2000976 | FUSION FX TRIGGER KIT (2000976) | |
| 32 | 2000980 | FUSION FX SPOOL KIT (2000980) | |
| 33 | 117485 | COMPRESSION SPRING (117485) | |
| 34 | 2006911 | UPPER STRAP BRACKET (2006911) | |
| 35 | 2001148 | AIR ADAPTER KIT (2001148) | |
| 36 | 117509 | Quick Disconnect (male) for Graco Fusion Spray Gun (117509) | |
| 37 | 117510 | 1/4 NPT Air Line Coupler for Graco Fusion Spray Gun (117510) | |
| 38 | 15B565 | Ball Valve (15B565) | |
| 39 | 15B772 | Air Hose for Graco Spray Guns (15B772) | |
| 40 | 2001168 | FUSION FX MANF HOUSING CHK KIT (2001168) | |
| 41 | 2001169 | 832 FLAT HEAD SCREW KIT (2001169) | |
| 42 | 2001029 | FUSION FX INLET CHECK ORING KIT (2001029) | |
| 43 | 2000971 | FUSION FX REAR SAFETY CAP KIT (2000971) | |
| 44 | 2007204 | BALL AND SPRING KIT (2007204) | |
| 45 | 256385 | CLEARSHOT CARTRIDGE KIT (256385) | |
| 46 | 2000981 | FUSION FX MUFFLER KIT (2000981) | |
| 47 | 2007692 | Fusion FX Strap (2007692) | |
| 48 | 2001167 | FUSION FX PISTON RETAINING RING KIT (2001167) | |
| 49 | 117559 | GRACO ORING (117559) | |
| 50 | 113746 | ORING PACKING (113746) | |
| 51 | 2006158 | ORING FOR FUSION FX SPRAY GUN (2006158) | |
| 52 | 2001033 | FUSION FX AIR PISTON ORING KIT (2001033) | |
| 53 | 2001307 | REPAIR ORING FUSION FX KIT (2001307) | |
| 54 | FX37RD | 3737 FUSION FX MIX CHAMBER KIT (FX37RD) | |
| 55 | FX42RD | 4242 FUSION FX MIX CHAMBER KIT (FX42RD) | |
| 56 | FX47RD | 4747 FUSION FX MIX CHAMBER KIT (FX47RD) | |
| 57 | FX52RD | 5252 FX MIX CHAMBER KIT (FX52RD) | |
| 58 | FX60RD | 6060 FX MIX CHAMBER KIT (FX60RD) | |
| 59 | FX70RD | 7070 FX MIX CHAMBER KIT (FX70RD) | |
| 60 | FX20RD | Fusion FX Mix Chamber Round (FX20RD) |
