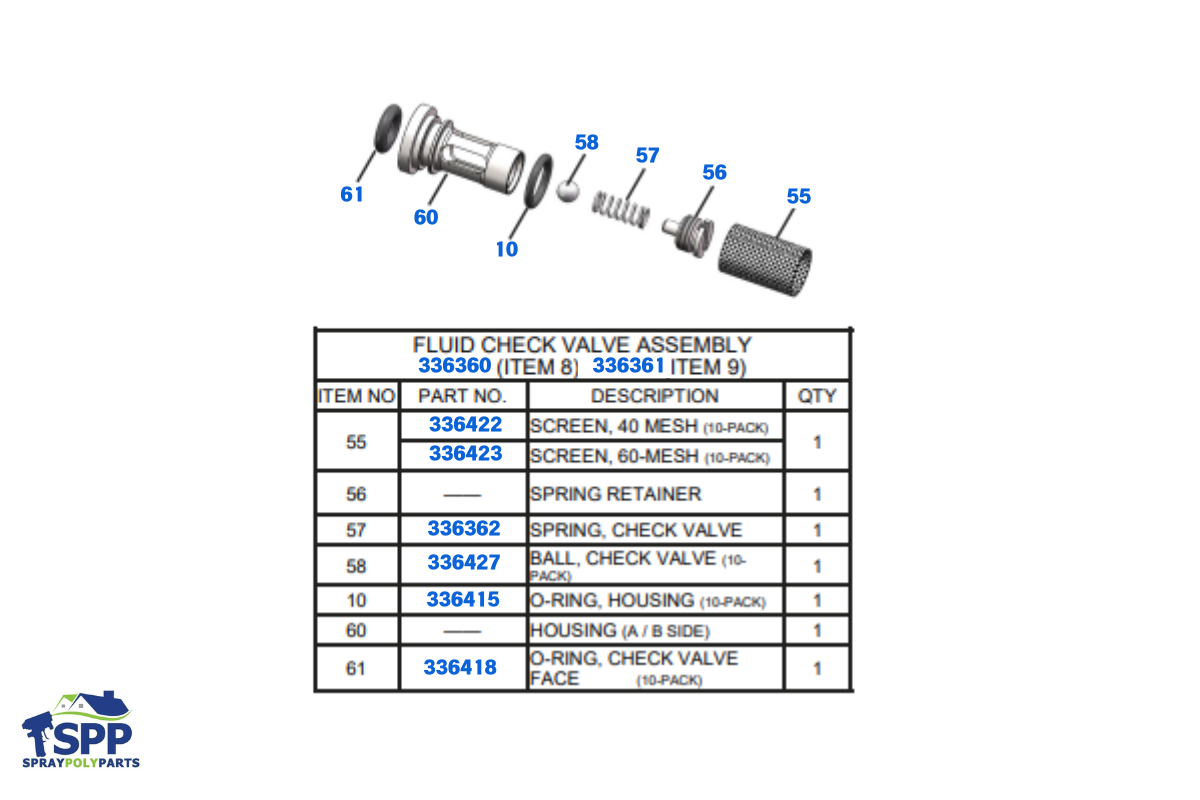

Fluid Check Valve

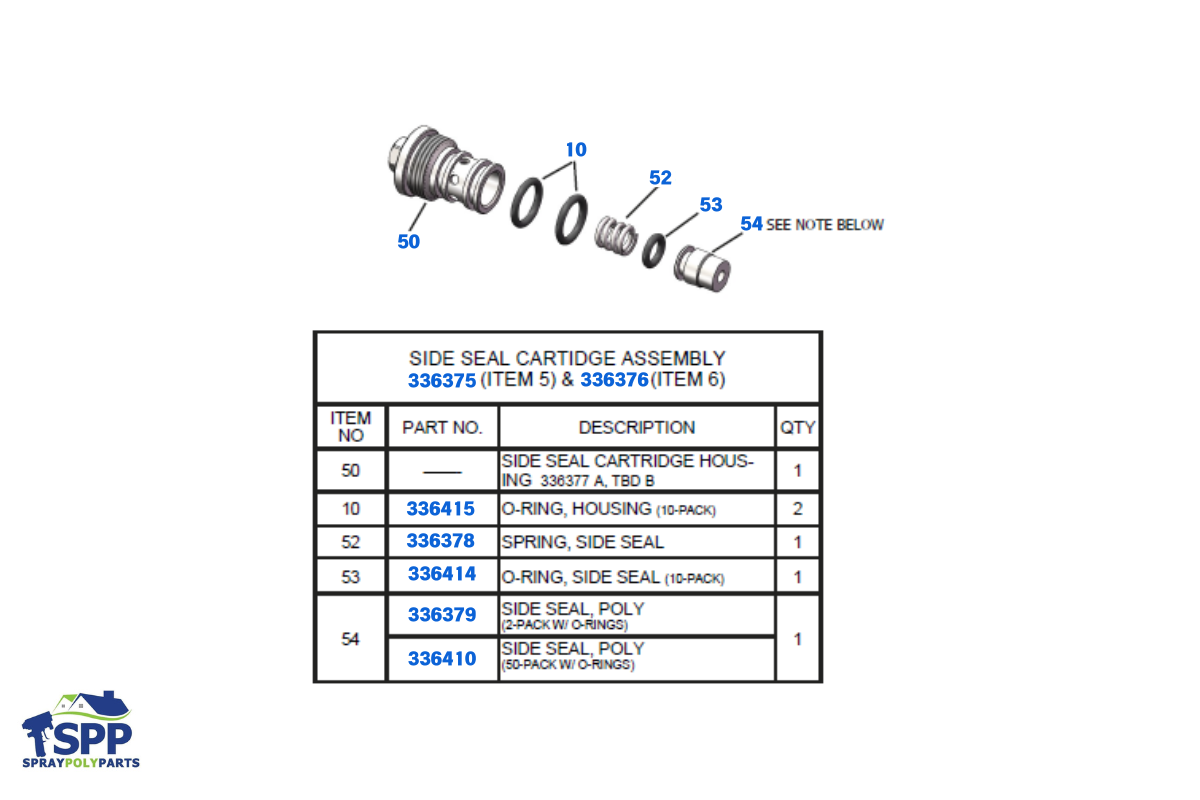

Side Seal Cartridge

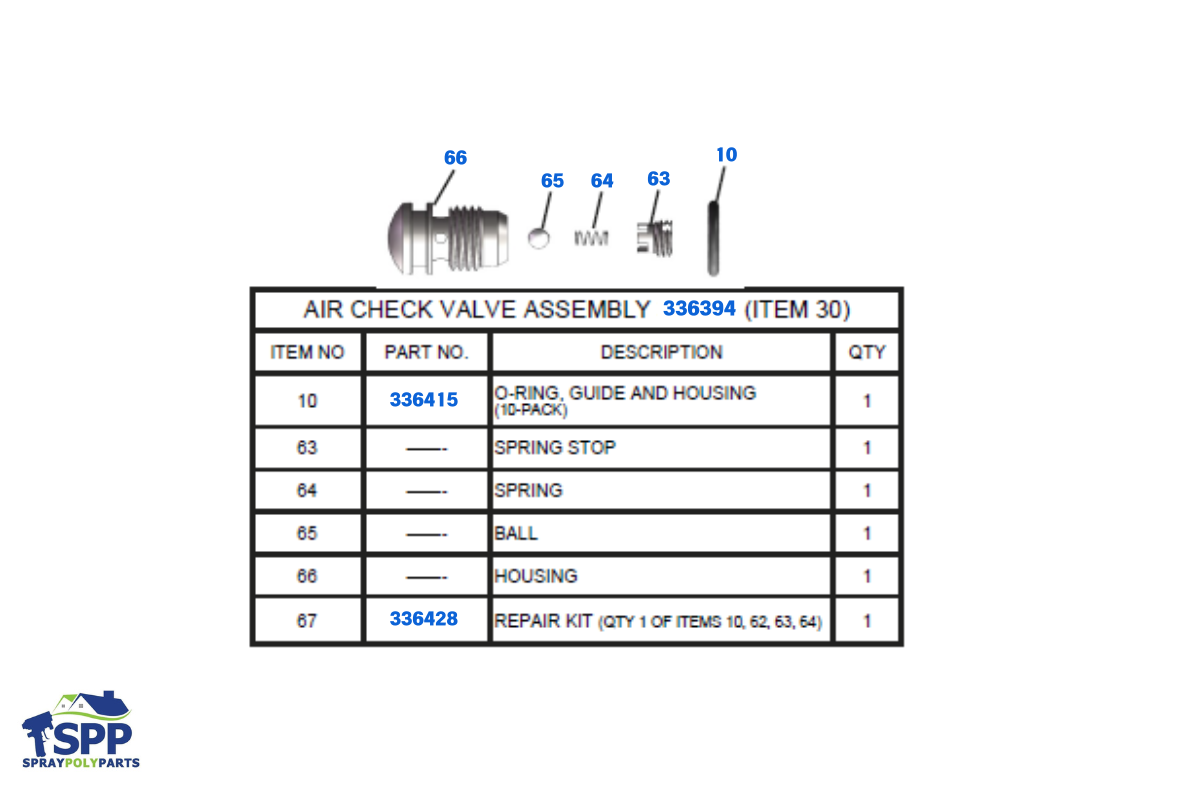

Air Check Valve
Mix Chambers & Mix Tips

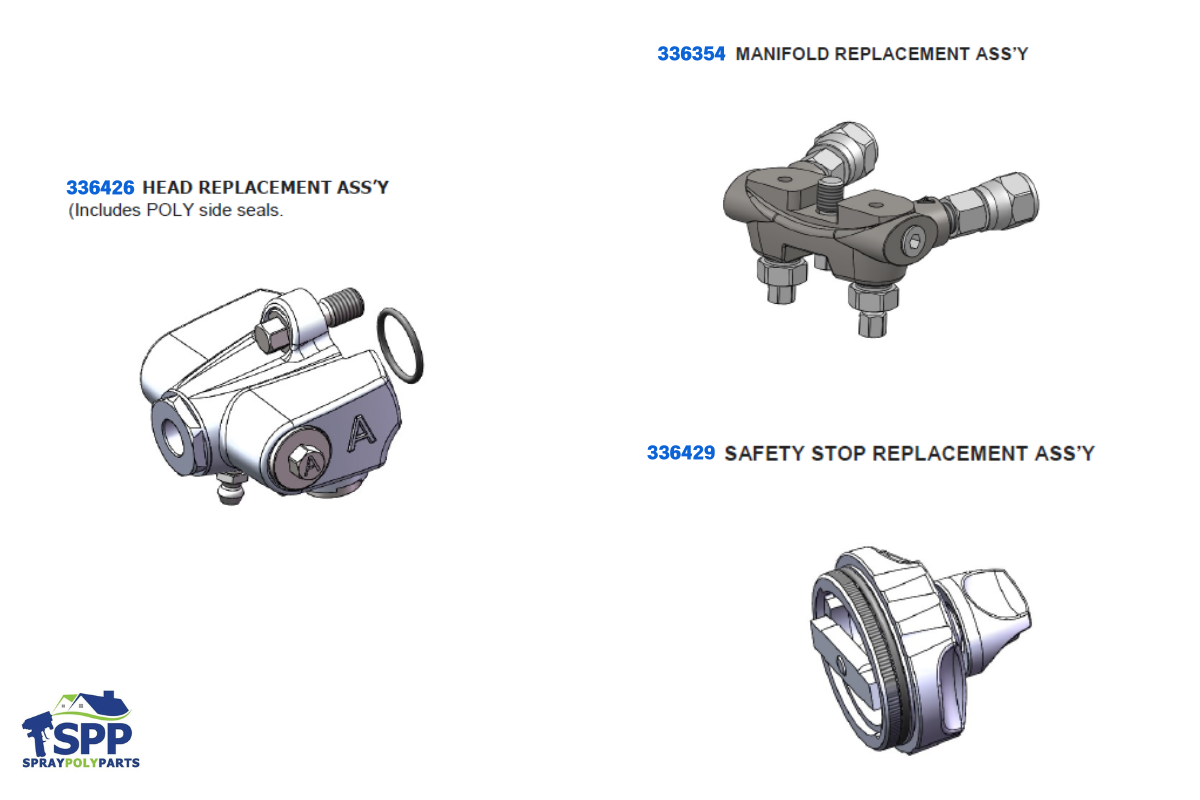

Assemblys
O-Rings

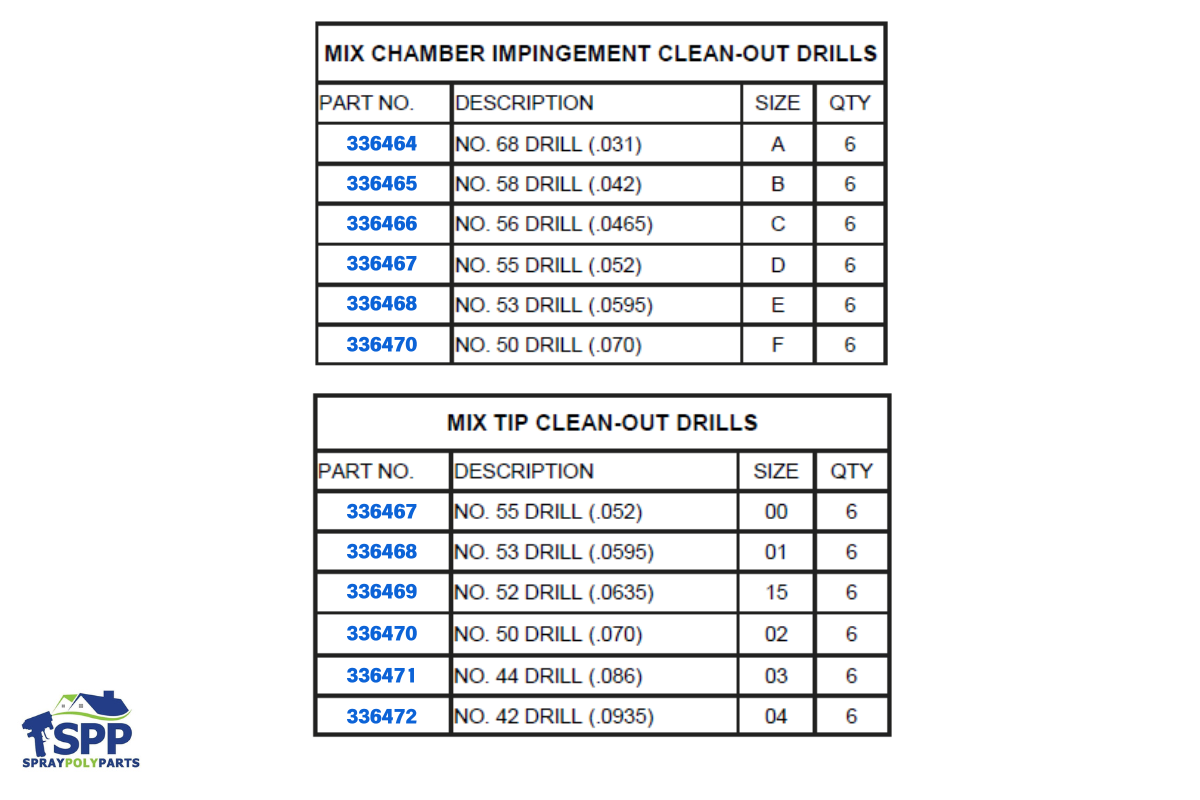

Cleanout Drills
Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 336737 | BINKS SAFTEY STOP KNOB (336737) | |
| 2 | 336413 | BINKS O RING STOP (336413) | |
| 3 | 336735 | BINKS SPRING (336735) | |
| 4 | IHR385 | GRACO R3, HXP3, PRO W/300 FT INTERNAL HEATED HOSE, 20 FT WHIP (IHR385) | |
| 5 | 336736 | BINKS LOCK ARM (336736) | |
| 6 | 336419 | BINKS AIR PISTON O RING (336419) | |
| 7 | 336397 | BINKS QD COUPLER (336397) | |
| 8 | 336370 | BINKS ROD AND PISTON (336370) | |
| 9 | 336412 | BINKS ORING, AIR VALVE/PIST ROD (10 PK) (336412) | |
| 10 | 336394 | BINKS AIR CHECK VALVE ASSY (336394) | |
| 11 | 336396 | BINKS QD STEM (336396) | |
| 12 | 336395 | BINKS QD BASE (336395) | |
| 13 | 336367 | BINKS SPRING (336367) | |
| 14 | 336366 | BINKS VALVE STEM (336366) | |
| 15 | 336643 | BINKS HOSE ASSY (336643) | |
| 16 | 336352 | BINKS FOAM GUN BODIED MACHINED (336352) | |
| 17 | 336359 | BINKS SHAFT GUIDE DELRIN (336359) | |
| 18 | 336417 | BINKS ORING 2PK HEAD/BODY JUNCTION (336417) | |
| 19 | 336353 | BINKS HEAD MACHINED FOAM GUN (336353) | |
| 20 | 336375 | BINKS SIDE SEAL CARTRIDGE ASSY; A (336375) | |
| 21 | 336376 | BINKS SIDE SEAL CARTRIDGE ASSY; B (336376) | |
| 22 | 336356 | BINKS MANIFOLD SCREW 2 PK (336356) | |
| 23 | 336415 | BINKS ORING SIDE SEAL/CHECK VALVE (10 PK) (336415) | |
| 24 | 336360 | BINKS CHECK VALVE A SIDE (336360) | |
| 25 | 336361 | BINKS CHECK VALVE B SIDE (336361) | |
| 26 | 336738 | BINKS GREASE FITTING (336738) | |
| 27 | 336437 | BINKS GUIDE ASSY (336437) | |
| 28 | 336446 | BINKS MIX CHAMBER KIT SZ A (336446) | |
| 29 | 336453 | BINKS MIX TIP KIT (336453) | |
| 30 | 336365 | BINKS TRIGGER SCREW (336365) | |
| 31 | 336408 | BINKS BALL VALVE FITING (336408) | |
| 32 | 336358 | BINKS SWIVEL ADAPTER B SIDE (336358) | |
| 33 | 336357 | BINKS SWIVEL ADAPTER A SIDE (336357) | |
| 34 | 336355 | BINKS FLUID MANIFOLD (336355) | |
| 35 | 336372 | BINKS MANUAL VALVE ASSY (336372) | |
| 36 | 336364 | BINKS TRIGGER STUD (336364) | |
| 37 | 336436 | BINKS FLUSH MANIFOLD ASSY (336436) | |
| 38 | 336374 | BINKS MUFFLER (336374) | |
| 39 | 336398 | BINKS STRAP (336398) | |
| 40 | 336363 | BINKS TRIGGER (336363) | |
| 41 | 336400 | BINKS SPACER (336400) | |
| 42 | 336399 | BINKS GUN CLIP (336399) | |
| 43 | 336401 | BINKS STUD (336401) | |
| 44 | 336354 | BINKS FLUID MANIFOLD ASSY (336354) |
