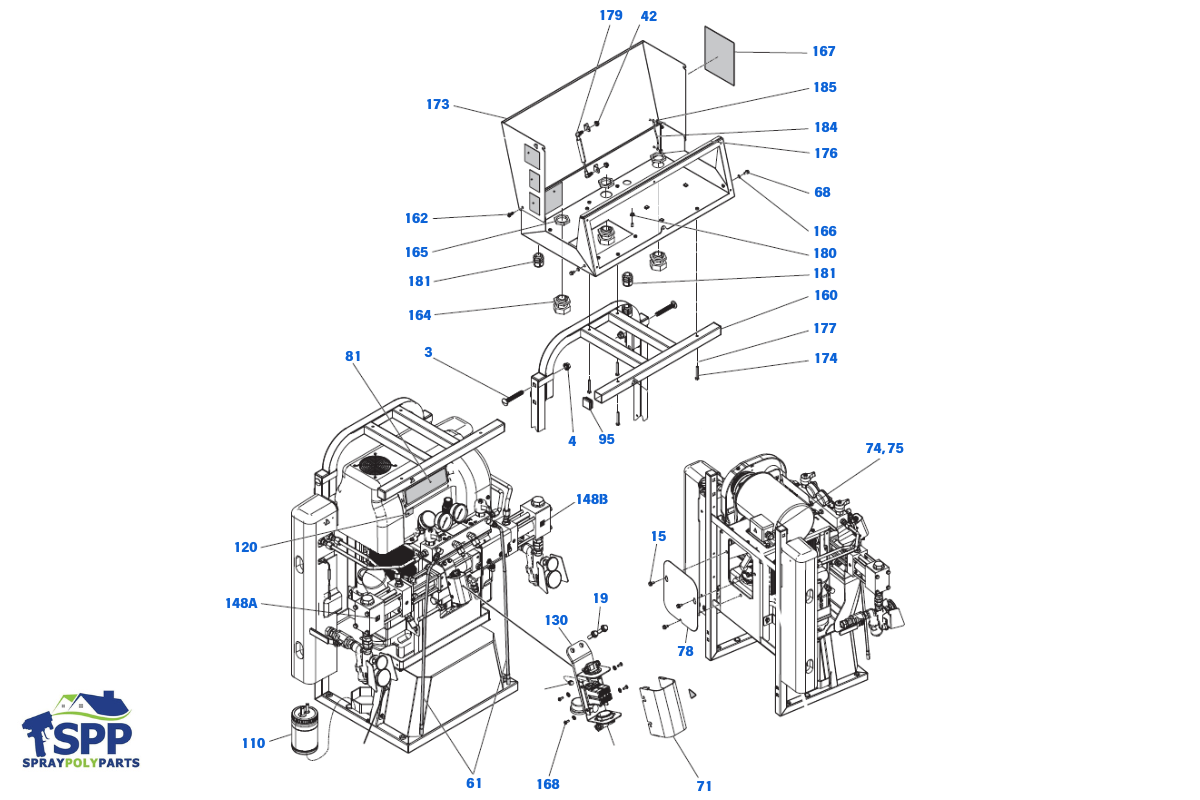

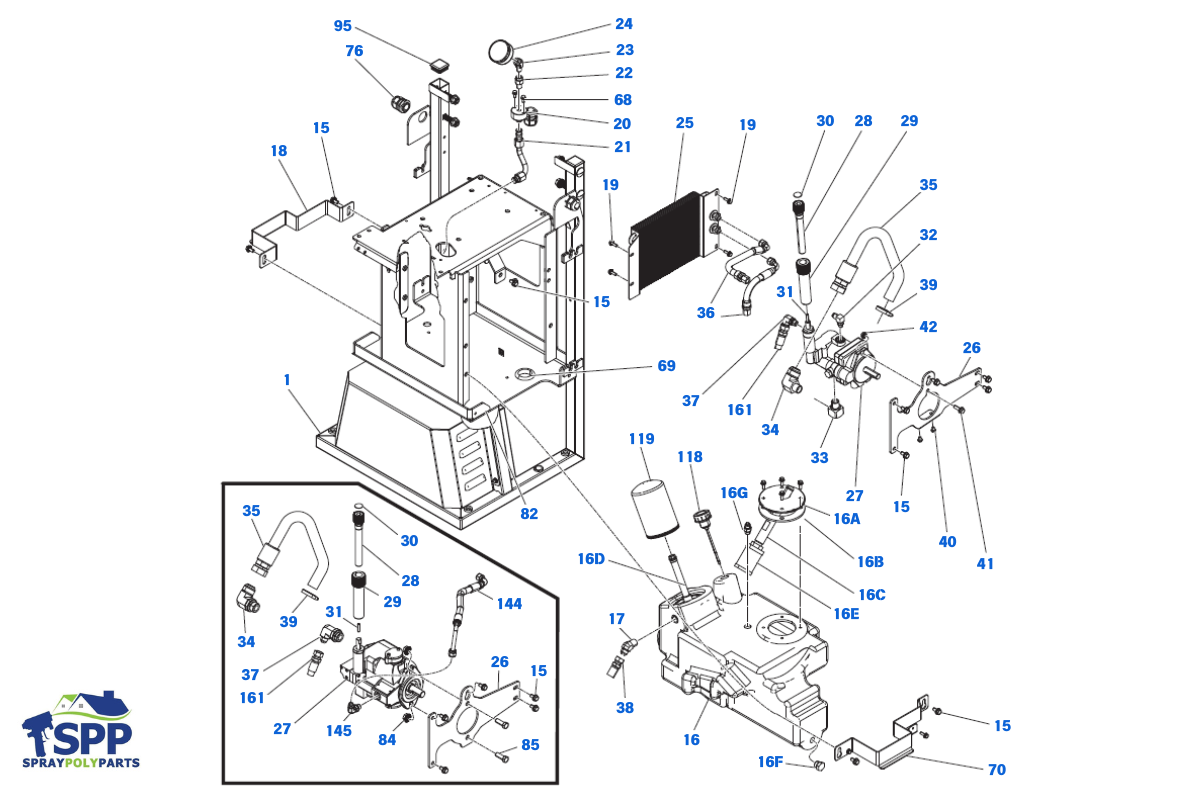

GH-4 (3/6)

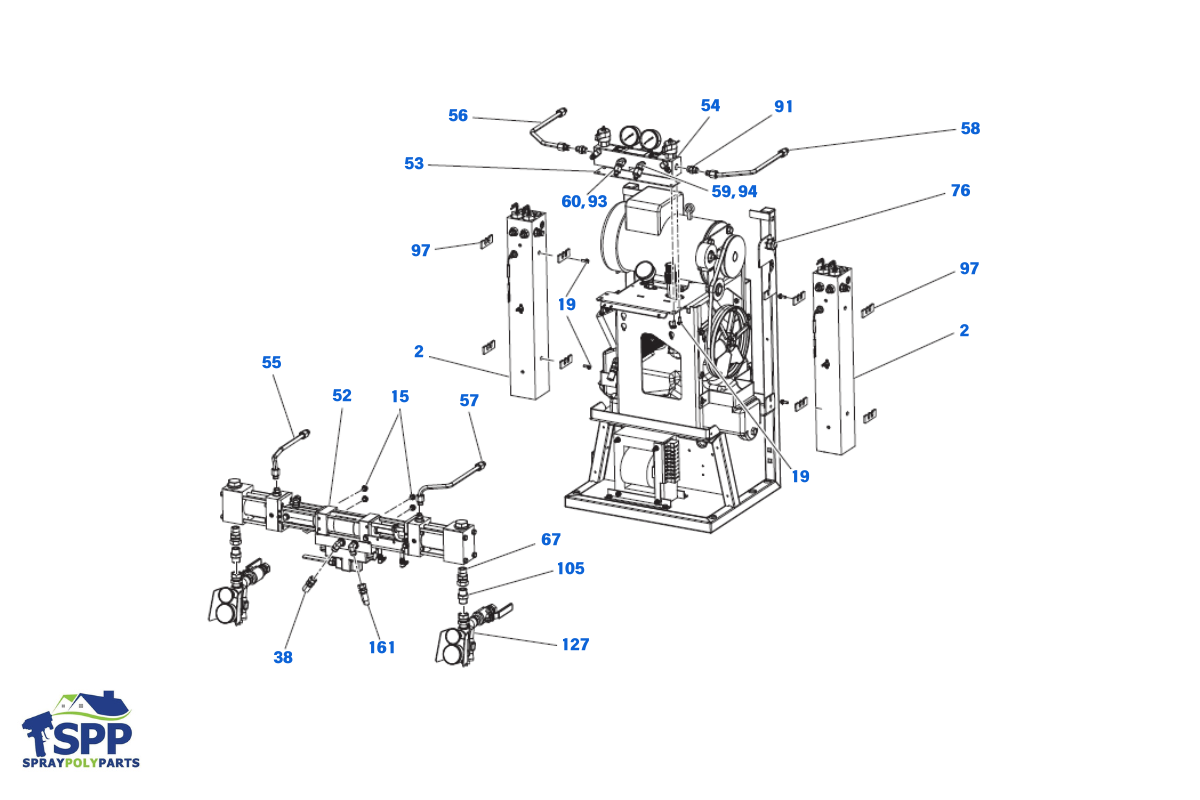

GH-4 (4/6)
GH-4 (5/6)

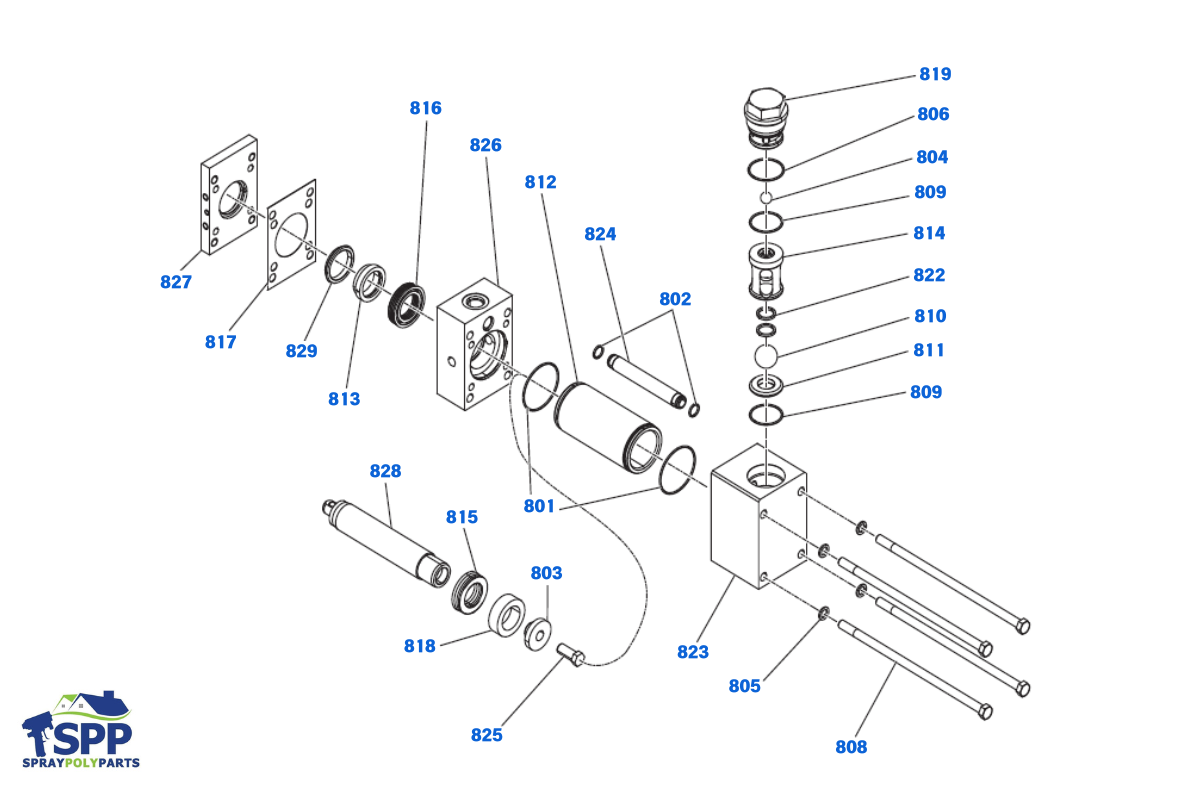

GH-4 (6/6)

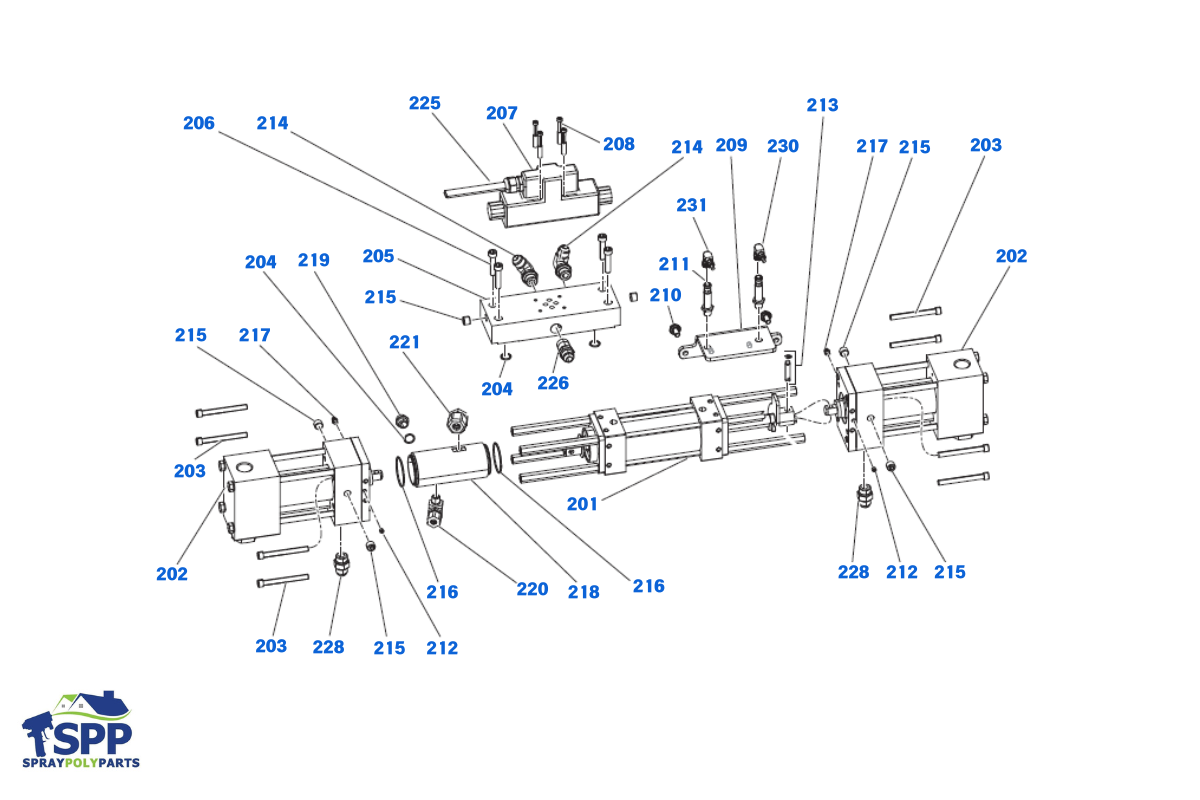

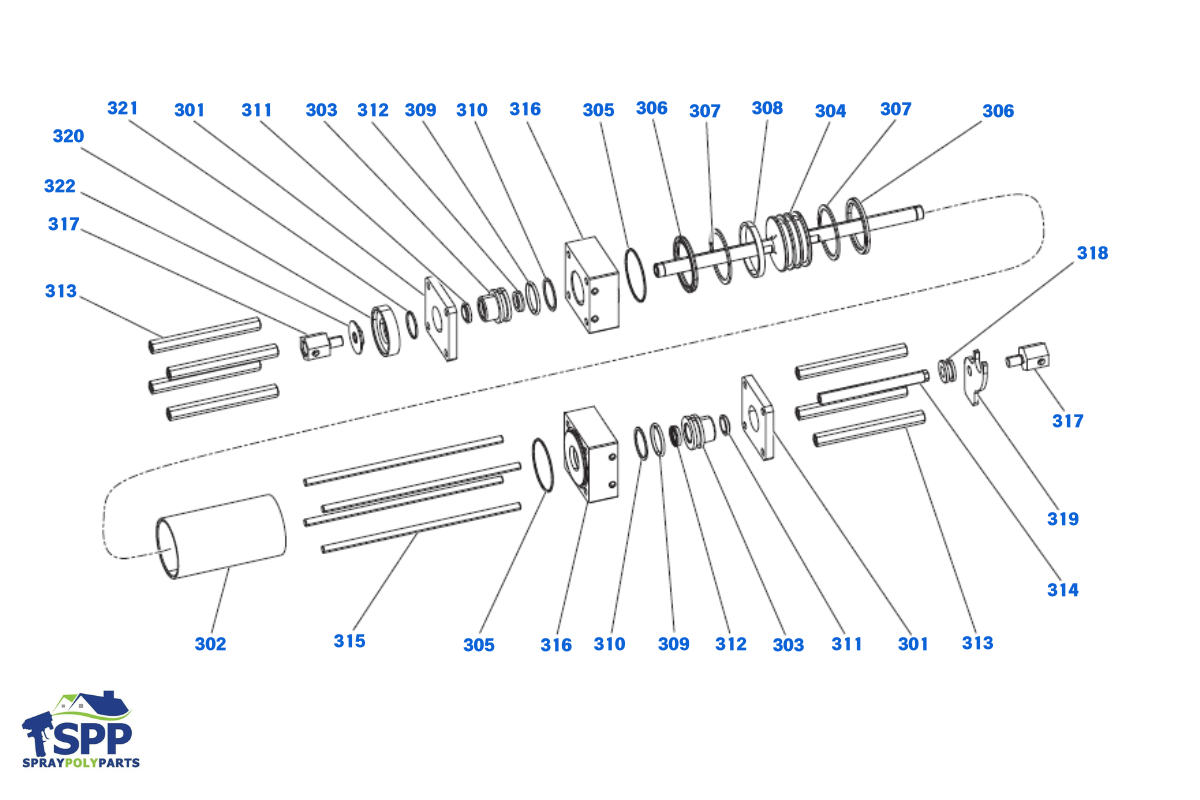

Air Cylinder

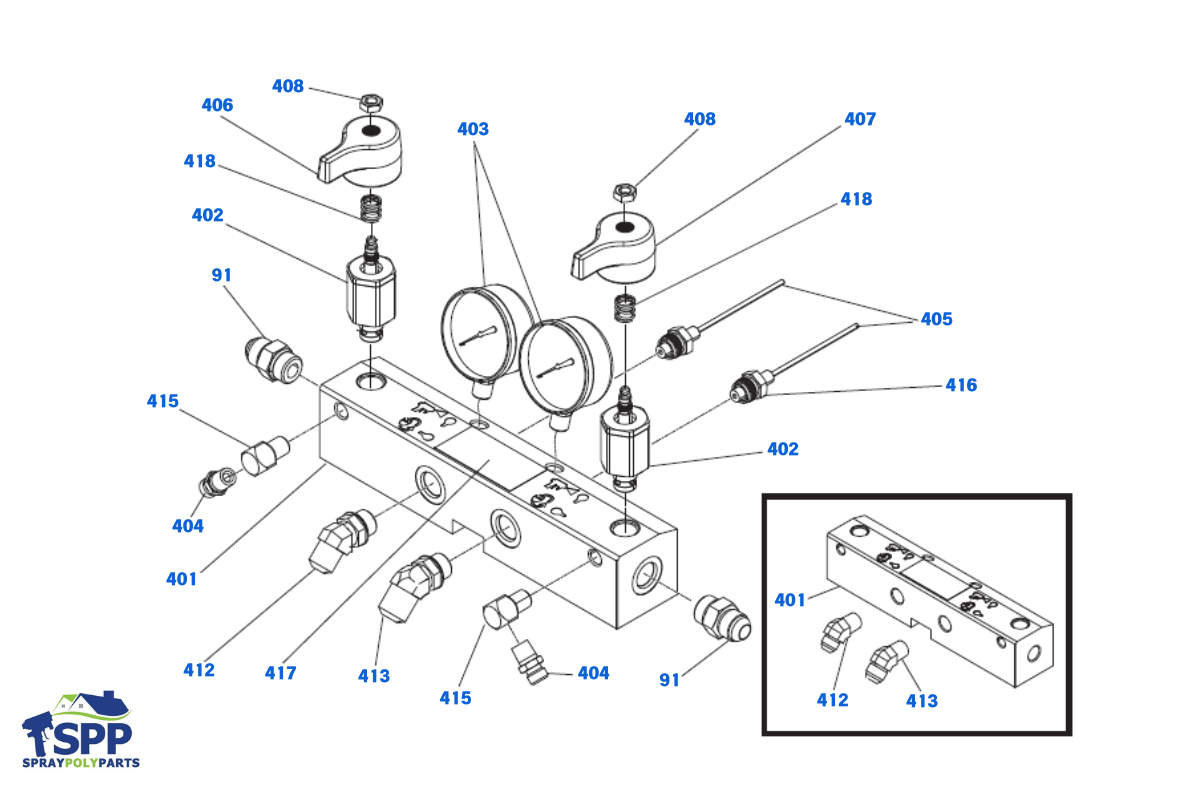

Fluid Manifold

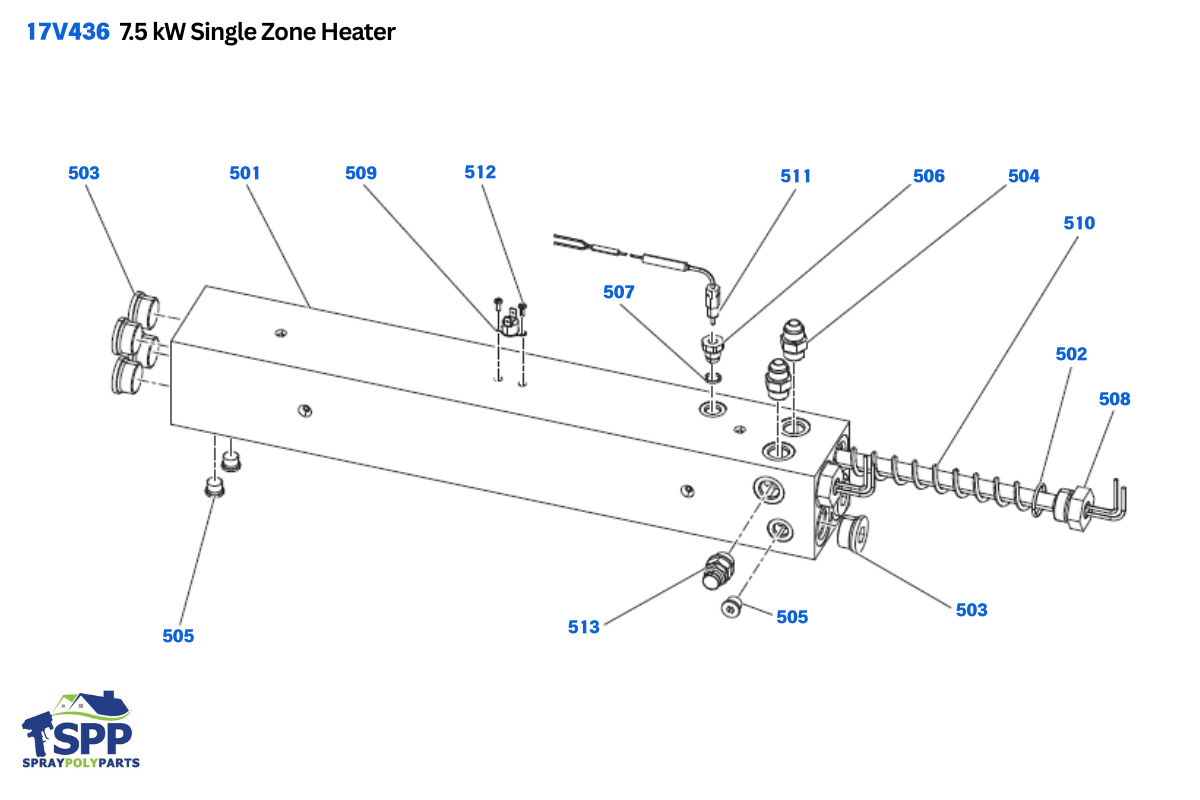

Heater

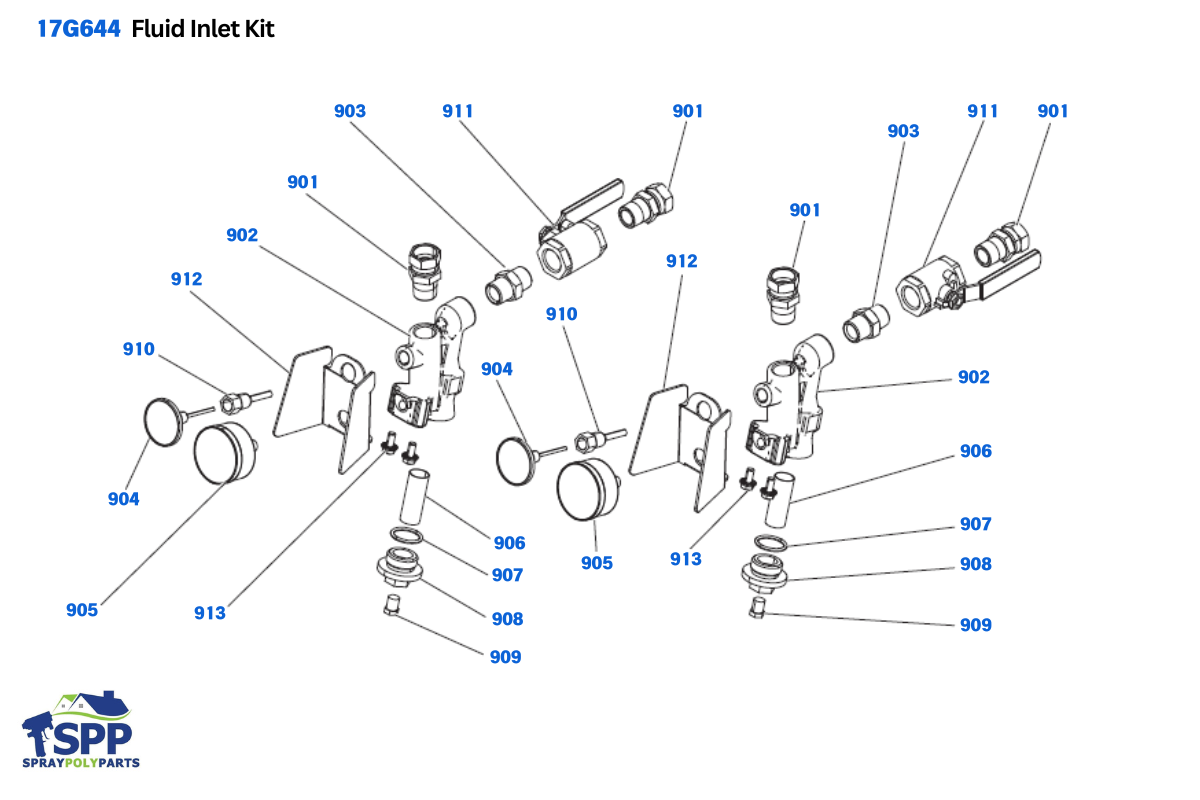

Fluid Inlet Kits

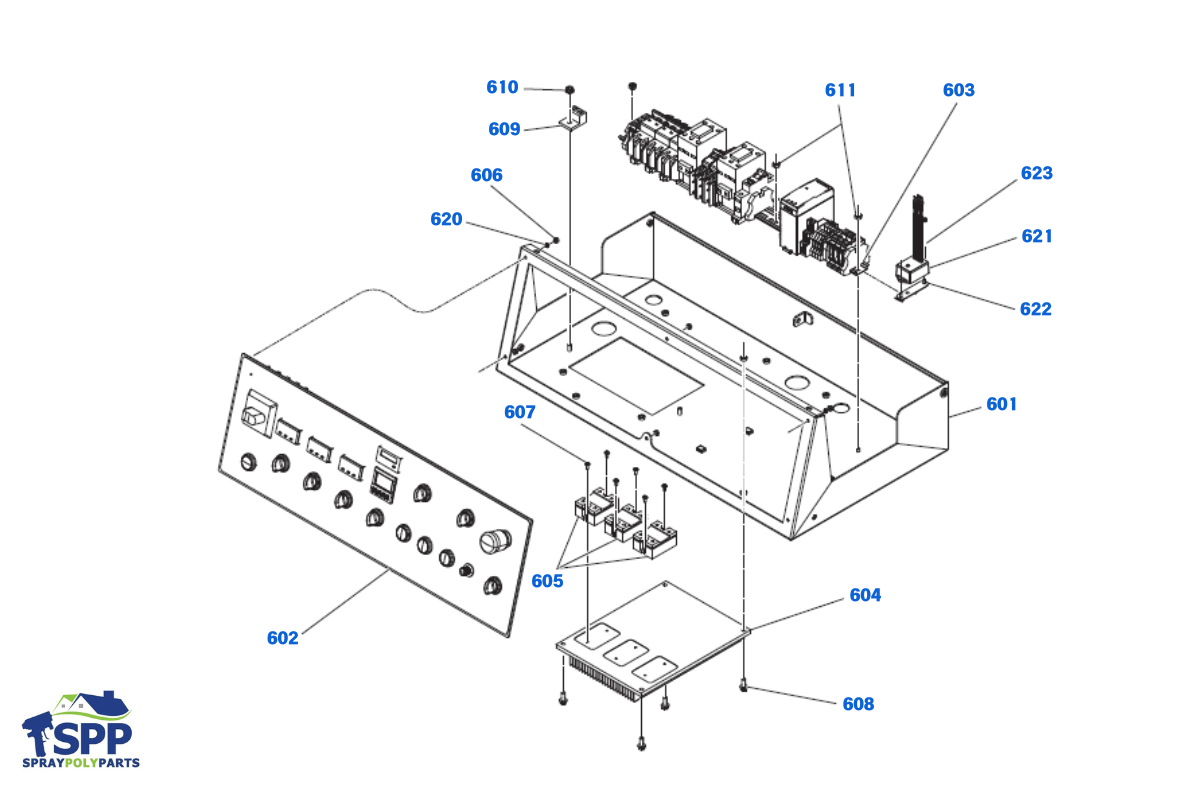

Electrical Enclosure

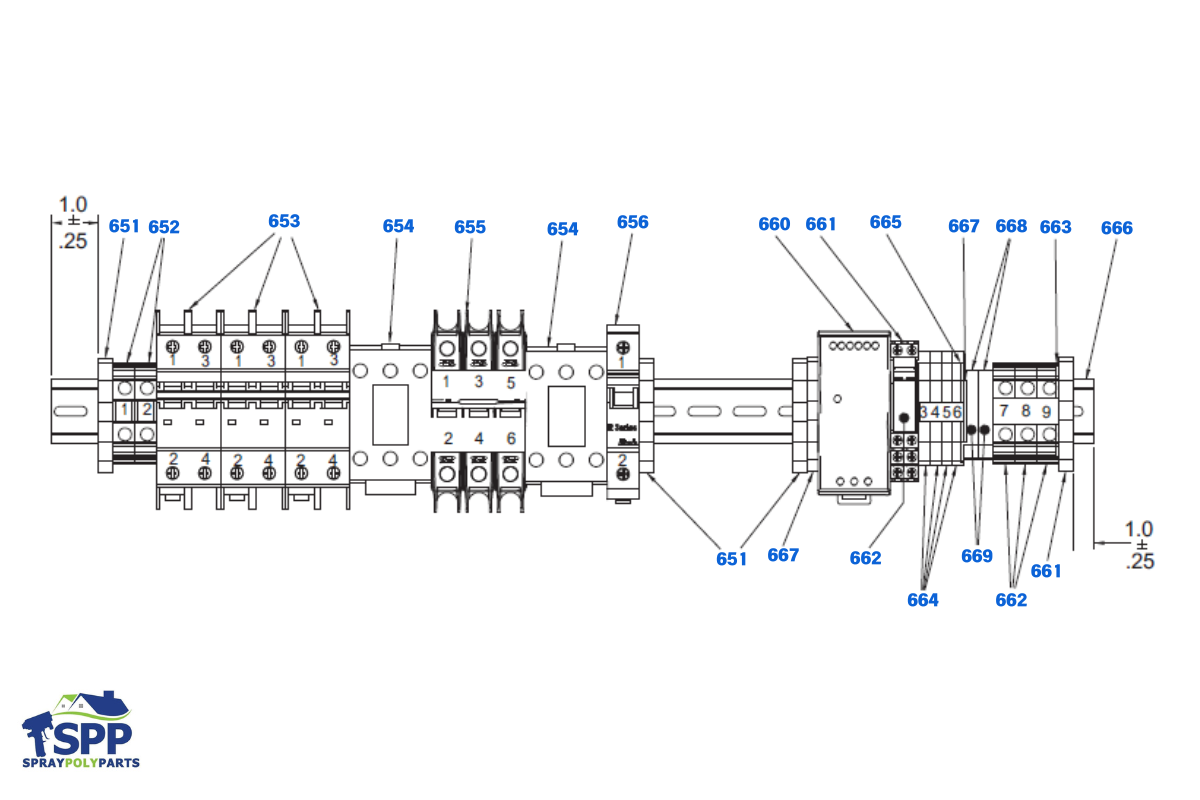

Breaker Module

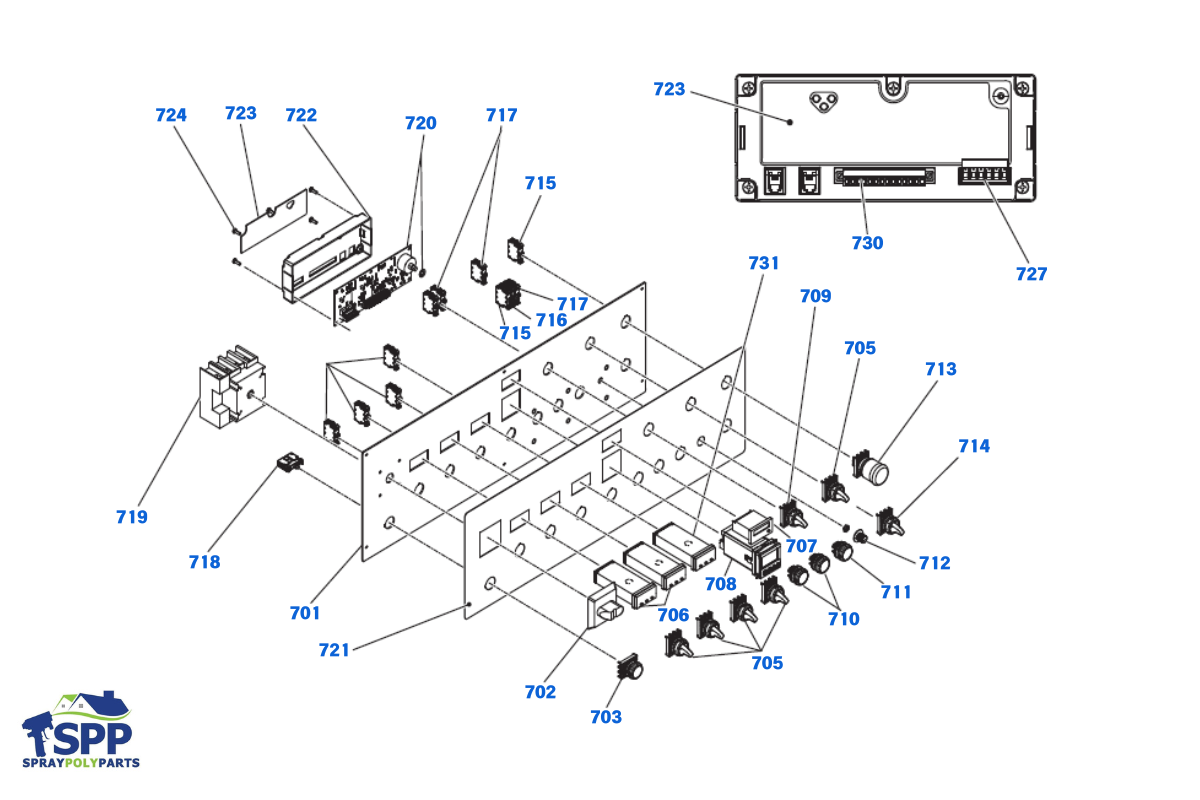

Control Panel
Parts in this Diagram
| # | SKU | Part Name | Notes |
|---|---|---|---|
| 1 | 247785 | 230V/480V 3PH 7.5HP MOTOR KIT (247785) | |
| 2 | 15H207 | TENSIONER BRACKET (15H207) | |
| 3 | 114027 | R2 FLAT WASHER (114027) | |
| 4 | 17V446 | GRACO SILVER MOTOR COVER (17V446) | |
| 5 | 113796 | GRACO HEX HD FLANGED SCREW (113796) | |
| 6 | 115836 | GRACO FINGER GUARD (115836) | |
| 7 | 17V447 | GRACO UPPER BELT COVER (17V447) | |
| 8 | 117284 | FAN GUARD GRILL (117284) | |
| 9 | 17V448 | GRACO LOWER BELT COVER (17V448) | |
| 10 | 17V450 | GRACO RIGHT HEATER COVER (17V450) | |
| 11 | 247845 | VEE DRIVE PULLEY KIT (247845) | |
| 12 | 803889 | AX46 BELT (803889) | |
| 13 | 247853 | GRACO TENSIONER BELT ADJUSTER KIT (247853) | |
| 14 | 113802 | FLANGED HEX HD SCREW (113802) | |
| 15 | C19843 | SOCKETHEAD CAP SCREW (C19843) | |
| 16 | 120087 | 1/4 X 1/2 SET SCREW (120087) | |
| 17 | 15E410 | FAN PULLEY (15E410) | |
| 18 | 17V451 | GRACO LEFT HEATER COVER (17V451) | |
| 19 | 17G623 | TRANSFORMER COVER KIT (17G623) | |
| 20 | 17V459 | CLEAR HYDRO PUMP COVER KIT (17V459) | |
| 21 | 103181 | EXT LOCK WASHER (103181) | |
| 22 | 117683 | PHIL PAN HD MACH SCREW (117683) | |
| 23 | 17V437 | GRACO 24 VDC COOLING FAN KIT (17V437) | |
| 24 | 17V449 | GRACO 4090VA TRANSFORMER (17V449) | |
| 25 | 111800 | GRACO HEX HD CAP SCREW (111800) |
